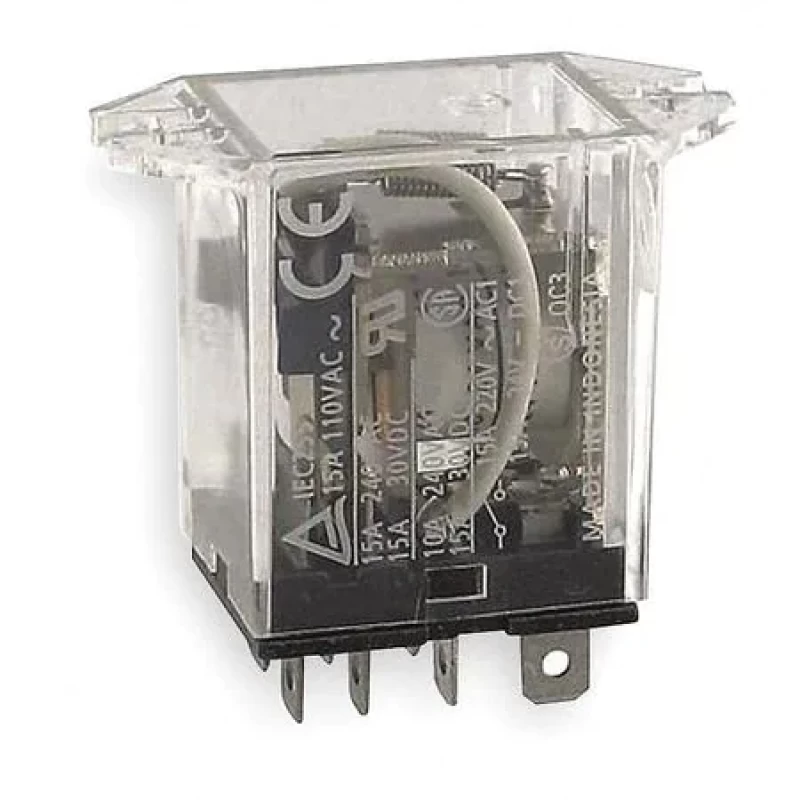

Relay, 8Pin, SPDT, 15A, 120VAC

Omron Part No : LY1F-AC110/120

Flange Mount Relay, Coil Volts 120V AC, AC Contact Rating - Relay 15A @ 120V, DC Contact Rating - Relay 15A @ 24V, Number of Pins - Relay 8, Contact Form - Relay SPDT, Mounting - Relay Top Flange, Power Consumption - Relay 1.1 VA, Socket Code - Relay J, Contact Material Silver Alloy, Status Indicator No, Push To Test Manual, Electrical Connection 0.200 in Solder Terminals

  • Description
  • Specifications

Flange Mount Relay, Coil Volts 120V AC, AC Contact Rating - Relay 15A @ 120V, DC Contact Rating - Relay 15A @ 24V, Number of Pins - Relay 8, Contact Form - Relay SPDT, Mounting - Relay Top Flange, Power Consumption - Relay 1.1 VA, Socket Code - Relay J, Contact Material Silver Alloy, Status Indicator No, Push To Test Manual, Electrical Connection 0.200 in Solder Terminals


  • Item: Flange Mount Relay
  • Coil Volts: 120V AC
  • AC Contact Rating - Relay: 15A @ 120V
  • DC Contact Rating - Relay: 15A @ 24V
  • Number of Pins - Relay: 8
  • Contact Form - Relay: SPDT
  • Power Consumption - Relay: 1.1 VA
  • Mounting - Relay: Top Flange
  • Contact Material: Silver Alloy
  • HP @ 120V: 1/2 hp
  • Contact Rating: 15A @ 110VAC/24VDC
  • Electrical Connection: 0.200 in Solder Terminals
  • Mounting: Top
  • Status Indicator: No
  • Features: Arc Barrier Equipped, High Dielectric Strength (2,000 V AC)
