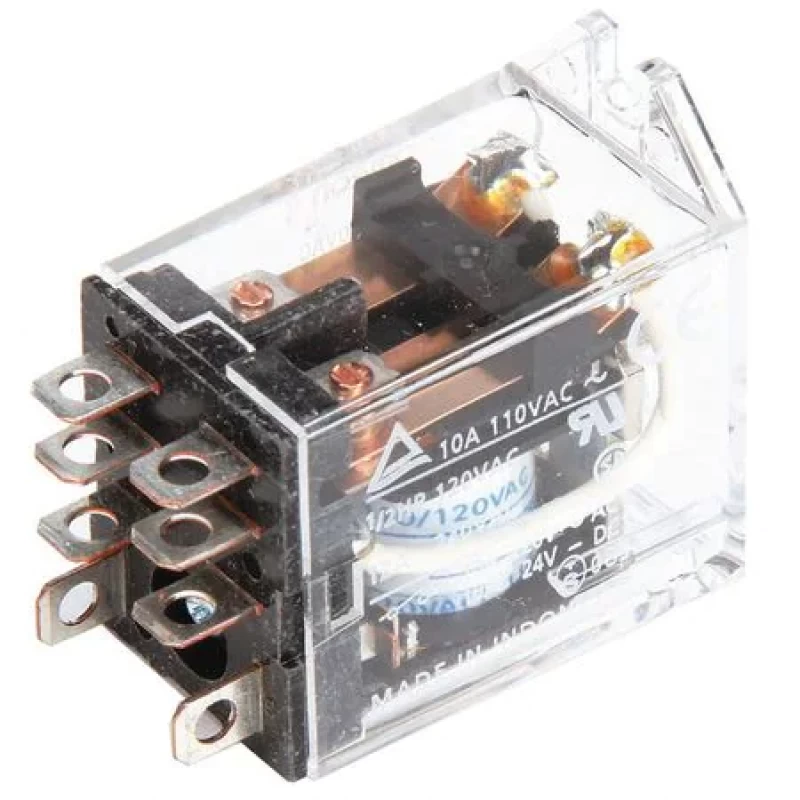

Relay, 8Pin, DPDT, 10A, 24VAC

Omron Part No : LY2F-AC24

Flange Mount Relay, Coil Volts 24V AC, AC Contact Rating - Relay 10A @ 120V, DC Contact Rating - Relay 10A @ 24V, Number of Pins - Relay 8, Contact Form - Relay DPDT, Mounting - Relay Top Flange, Power Consumption - Relay 1.1 VA, Socket Code - Relay J, Contact Material Silver Alloy, Status Indicator No, Push To Test Manual, Electrical Connection 0.200 in Solder Terminals

  • Description
  • Specifications

Flange Mount Relay, Coil Volts 24V AC, AC Contact Rating - Relay 10A @ 120V, DC Contact Rating - Relay 10A @ 24V, Number of Pins - Relay 8, Contact Form - Relay DPDT, Mounting - Relay Top Flange, Power Consumption - Relay 1.1 VA, Socket Code - Relay J, Contact Material Silver Alloy, Status Indicator No, Push To Test Manual, Electrical Connection 0.200 in Solder Terminals


  • Item: Flange Mount Relay
  • Coil Volts: 24V AC
  • AC Contact Rating - Relay: 10A @ 120V
  • DC Contact Rating - Relay: 10A @ 24V
  • Number of Pins - Relay: 8
  • Contact Form - Relay: DPDT
  • Power Consumption - Relay: 1.1 VA
  • Contact Material: Silver Alloy
  • Mounting - Relay: Top Flange
  • HP @ 120V: 1/3 hp
  • Body Depth - Relay: 1.14 in
  • Contact Rating: 10A @ 110VAC/24VDC
  • Overall Height - Relay: 1.65 in
  • Status Indicator: No
  • Features: Arc Barrier Equipped, High Dielectric Strength (2,000 V AC)
