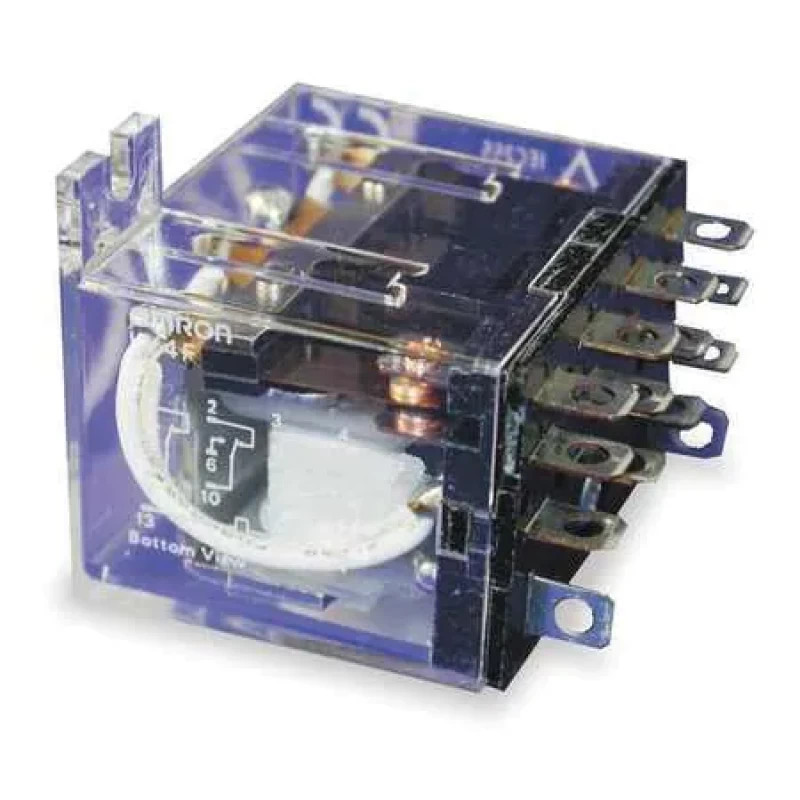

Relay, 14Pin, 4PDT, 10A, 24VDC

Omron Part No : LY4F-DC24

The most common general purpose relays use a hinged armature and a spring to open and close their contact. Product specs for this Flange Mount Relay include the following: CONTACT FORM: 4PDT, COIL VOLTS: 24VDC, MOUNTING: Top

  • Description
  • Specifications

The most common general purpose relays use a hinged armature and a spring to open and close their contact. Product specs for this Flange Mount Relay include the following: CONTACT FORM: 4PDT, COIL VOLTS: 24VDC, MOUNTING: Top


  • Item - Relay: Flange Mount Relay
  • Coil Volts: 24V DC
  • AC Contact Rating - Relay: 10A @ 120V
  • DC Contact Rating - Relay: 10A @ 24V
  • Number of Pins - Relay: 14
  • Power Consumption - Relay: 1.5 W
  • Contact Form - Relay: 4PDT
  • Contact Material: Silver Alloy
  • Mounting - Relay: Top Flange
  • HP @ 120V: 1/10 hp
  • Overall Height - Relay: 1.65 in
  • Contact Rating: 10A @ 110VAC/24VDC
  • Body Height - Relay: 1.4 in
  • Push To Test: Manual
  • Features: Arc Barrier Equipped, High Dielectric Strength (2,000 V AC)
