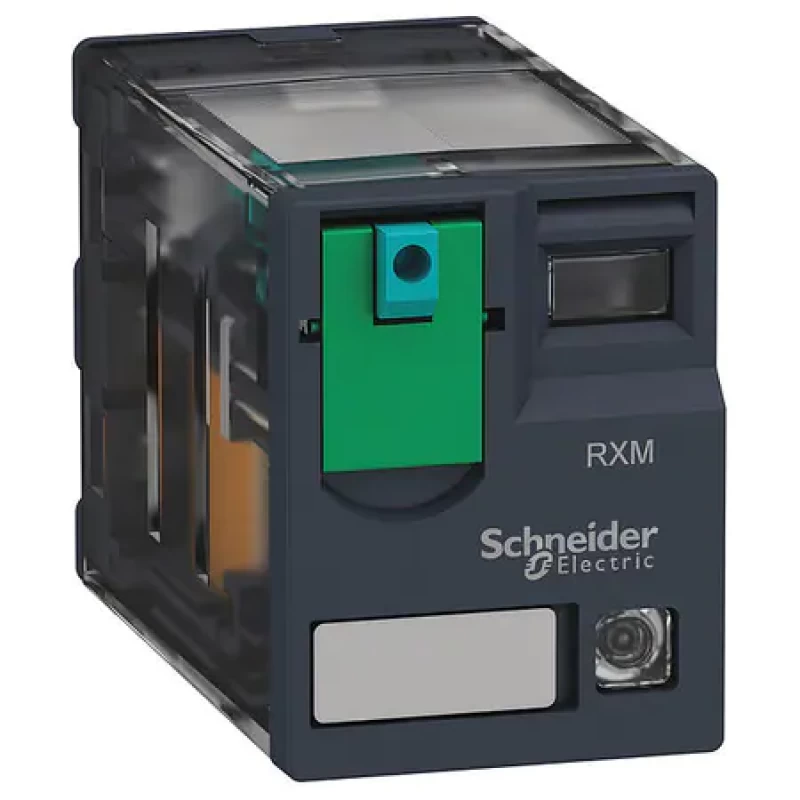

Relay, 110V DC Coil Volts, Square, 8 Pin, DPDT

schneider Part No : RXM2AB2FD

Item: Relay

Coil Volts: 110V DC

AC Contact Rating - Relay: 12A @ 250/277V, 6A @ 250V

Relay, Coil Volts 110V DC, AC Contact Rating - Relay 12A @ 250/277V, 6A @ 250V, DC Contact Rating - Relay 12A @ 28V, 6A @ 28V, Base Type - Plug In Relay Square, Number of Pins - Relay 8, Contact Form - Relay DPDT, Mounting - Relay Plug In, Socket Code - Relay K, Power Consumption - Relay 0.9 W, Contact Material Silver Nickel, Status Indicator LED, Push To Test Lockable


  • Coil Volts: 110V DC
  • AC Contact Rating - Relay: 12A @ 250/277V, 6A @ 250V
  • DC Contact Rating - Relay: 12A @ 28V, 6A @ 28V
  • Base Type - Plug In Relay: Square
  • Number of Pins - Relay: 8
  • Contact Form - Relay: DPDT
  • Mounting - Relay: Plug In
  • Power Consumption - Relay: 0.9 W
  • Contact Material: Silver Nickel
  • Body Height - Relay: 1.06 in
  • Body Width - Relay: 0.82 in
  • Body Depth - Relay: 1.57 in
  • Overall Height - Relay: 1.06 in
  • Features: IP Degree of Protection: IP40; Mercury Free: Yes, Toxic Heavy Metal Free: Yes
  • Standards: CSA C22.2 No 14, EN/IEC 61810-1, UL 508
  • Push To Test: Lockable
  • Item - Relay: Plug In Relay
