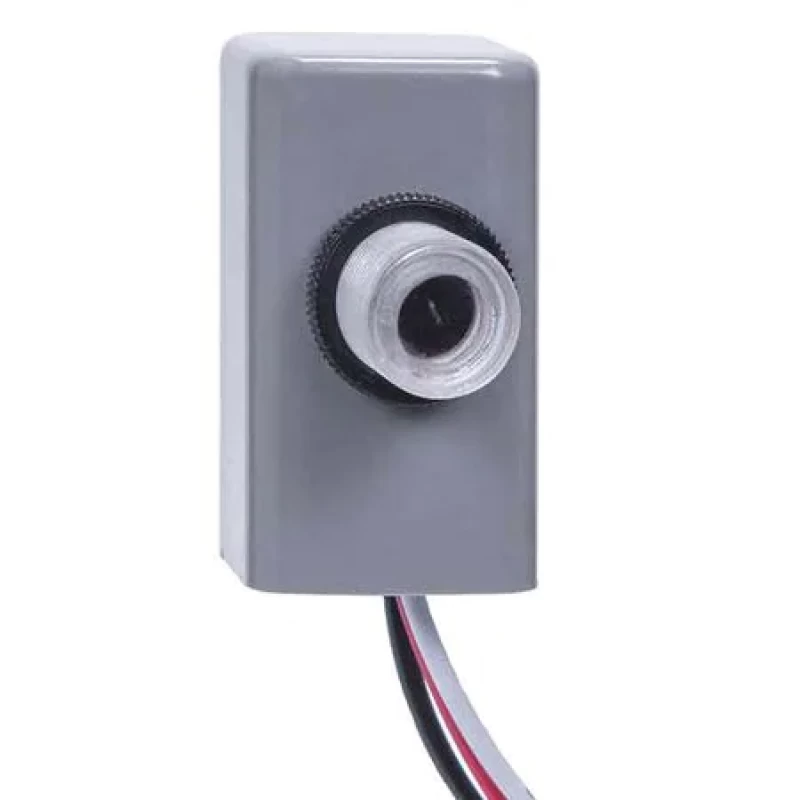

Photocontrol, 3/8"-18 NPSM Thread Mount

Intermatic Part No : EK4036Si

For Use With: Flood Lights, Security Lighting
Mounting: 3/8"-18 NPSM Thread
Voltage: 105 to 305V AC
Max. Wattage: 1,000
Max. Incandescent Amps: 15.0
Max. Ballast Amps: 8.3
Foot Candles On: 1.5

Photocontrol, Mounting 3/8 In.-18 NPSM Thread, Voltage 105 to 305V AC, Max. Wattage 1,000, Max. Incandescent Amps 15.0, Max. Ballast Amps 8.3, 1.5 Foot Candles On, 2.25 Foot Candles Off, Color Gray, Temp. Range -40 Degrees to 158 Degrees F, Length 2 1/4 in, Width 1 1/3 in, Depth 1 1/4 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Plastic, Setting Dusk to Dawn, Standards ANSI C136.24, CSA C22.2 No. 55-M1986/TIL -15, UL773, Includes Light Shield, Mounting Hardware


  • For Use With: Flood Lights, Security Lighting
  • Mounting: 3/8"-18 NPSM Thread
  • Voltage: 105 to 305V AC
  • Max. Wattage: 1,000
  • Max. Incandescent Amps: 15.0
  • Max. Ballast Amps: 8.3
  • Foot Candles On: 1.5
  • Foot Candles Off: 2.25
  • Color: Gray
  • Temp. Range: -40 Degrees to 158 Degrees F
  • Manufacturers Warranty Length: 8 yr
  • Housing Material: Plastic
  • Description/Special Features: LED Compatible
  • Contact Form: SPST
  • Setting: Dusk to Dawn
  • Length: 2 1/4 in
  • Enclosure Type: Raintight
  • Depth: 1 1/4 in
  • Includes: Light Shield, Mounting Hardware
  • Width: 1 1/3 in
  • Standards: ANSI C136.24, CSA C22.2 No. 55-M1986/TIL -15, UL773
  • Length (Straight Wireway): 2 1/4 in
