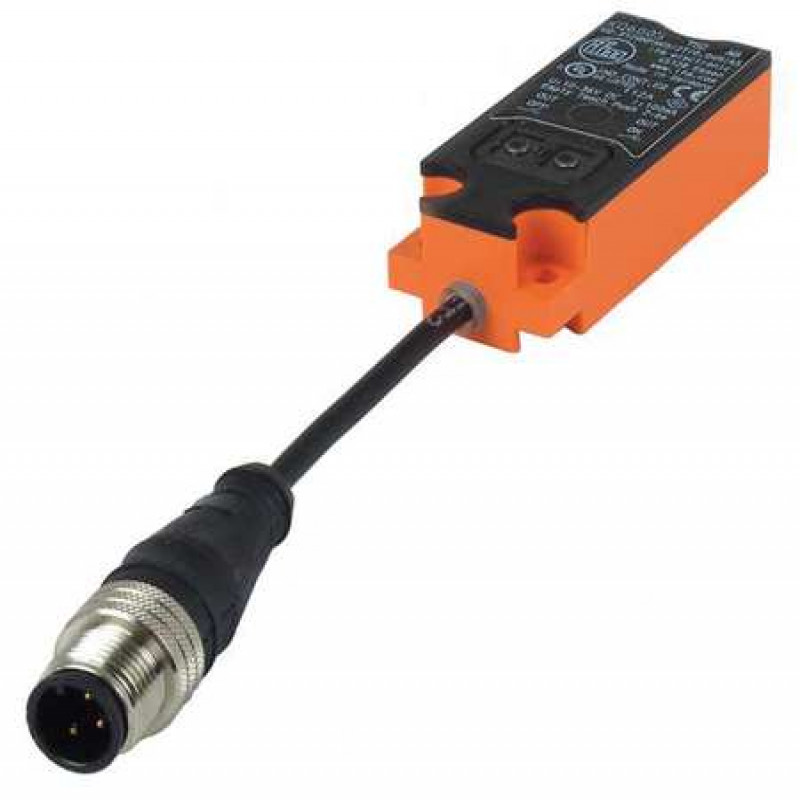

Rectangular Proximity Sensor, Capacitive, Proximity Sensor Power Requirement 10 to 30V DC, Unshielded, Proximity Sensor Operating Frequency 10 Hz, Proximity Sensor Output Circuit Type PNP, Max. Detecting Distance 12.0 mm, Proximity Sensor Electrical Connection M12 Connector, Output Mode NO/NC, IP Rating 65, 67, Case Material PBT, Length 48 mm, Width 20 mm, Depth 14 mm, Operating Temp. Range -13 Degrees to 176 Degrees F, Max. Current Load 100mA
Item: Rectangular Proximity SensorProximity Sensor Style: Rectangular Proximity SensorProximity Sensing Method: CapacitiveProximity Sensor Power Requirement: 10 to 30V DCProximity Sensor Output Circuit Type: PNPOutput Mode: NO/NCLength: 48 mmMax. Detecting Distance: 12.0 mmWidth: 20 mmProximity Sensor Electrical Connection: M12 ConnectorDepth: 14 mmShielded / Unshielded: UnshieldedBasic Proximity Sensor Case Material: PlasticProximity Sensor Operating Frequency: 10 HzCase Material: PBTStandards: CE Compliance, cUL ListedMax. Current Load: 100mAOperating Temp. Range: -13 Degrees to 176 Degrees FIP Rating: 65, 67Description/Special Features: Short-Circuit and Overload Protection, Yellow LED Output Indication
