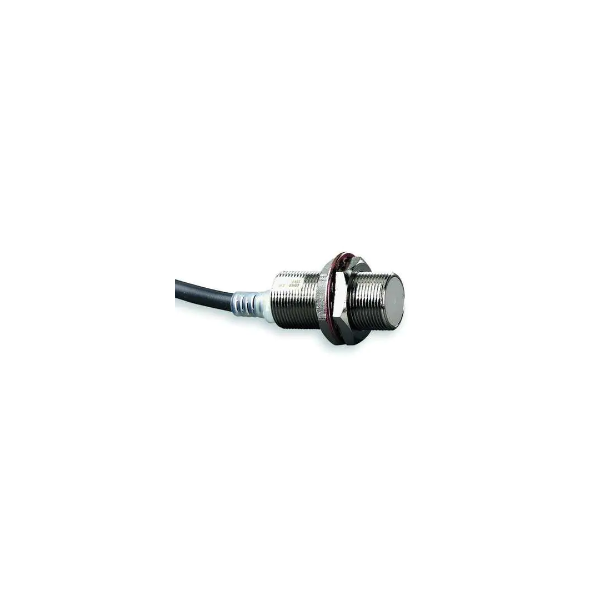

Proximity Sensor, Capacitive, 15mm, NC

IFM Part No : KI0203

Proximity Sensor Style: Cylindrical Proximity Sensor

Item: Cylindrical Proximity Sensor

Proximity Sensing Method: Capacitive

Cylindrical Proximity Sensor, Capacitive, 30.0 mm, Proximity Sensor Power Requirement 20 to 250V AC/DC, Unshielded, Proximity Sensor Operating Frequency 25 Hz AC/40 Hz DC, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 15.0 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NC, IP Rating 65, Case Material PBT, Length 99 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 250/200mA, Description/Special Features Yellow LED Output Indication

  • Item: Cylindrical Proximity Sensor
  • Proximity Sensing Method: Capacitive
  • Proximity Sensor Power Requirement: 20 to 250V AC/DC
  • Proximity Sensor Output Circuit Type: 2 Wire
  • Output Mode: NC
  • Length: 99 mm
  • Proximity Sensor Diameter: 30.0 mm
  • Max. Detecting Distance: 15.0 mm
  • Proximity Sensor Electrical Connection: 2m Cable
  • Basic Proximity Sensor Case Material: Plastic
  • Shielded / Unshielded: Unshielded
  • Proximity Sensor Operating Frequency: 25 Hz AC/40 Hz DC
  • Case Material: PBT
  • Standards: CE Compliance, cUL Listed
  • Max. Current Load: 250/200mA
  • Description/Special Features: Yellow LED Output Indication
  • IP Rating: 65
