Proximity Sensor, Inductive, 8mm, PNP, NO

IFM Part No : IGS204

Proximity Sensor Style: Cylindrical Proximity Sensor
Proximity Sensing Method: Inductive
Proximity Sensor Power Requirement: 10 to 30V DC
Proximity Sensor Output Circuit Type: 3 Wire PNP
Output Mode: NO

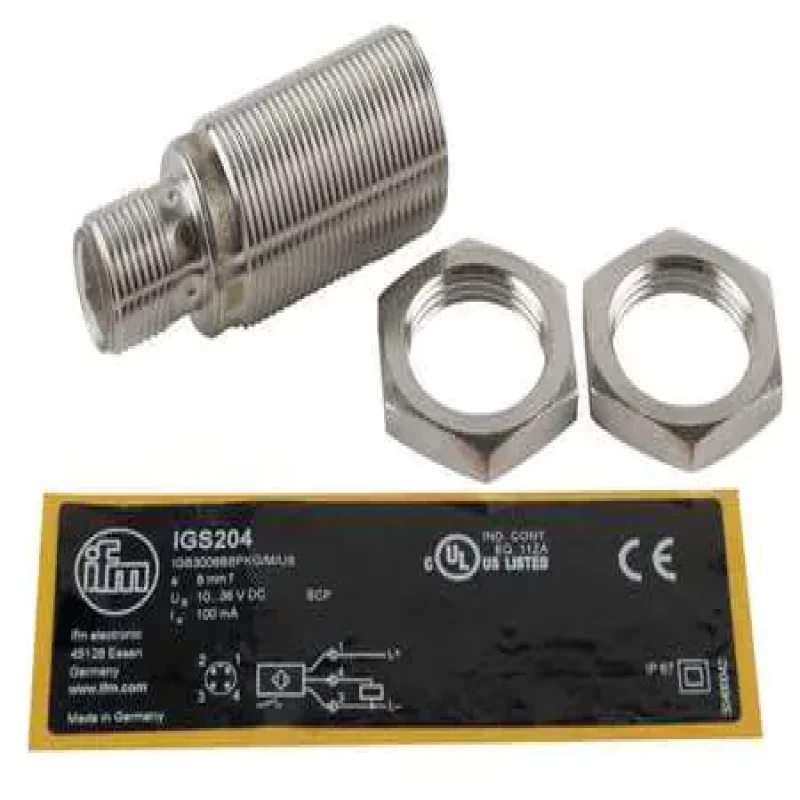

The IFM IGS204 Proximity Sensor is an inductive, cylindrical proximity sensor that detects the presence of an object within a specified distance. This proximity sensor is ideal for use in a variety of applications where object presence must be detected. It has a yellow LED output indication and is 3-wire PNP type. It is typically used in applications that require a small sensing range and is CE compliant and cUL listed.


  • Proximity Sensor Style: Cylindrical Proximity Sensor
  • Proximity Sensing Method: Inductive
  • Proximity Sensor Power Requirement: 10 to 30V DC
  • Proximity Sensor Output Circuit Type: 3 Wire PNP
  • Output Mode: NO
  • Length: 46 mm
  • Proximity Sensor Diameter: 18.0 mm
  • Max. Detecting Distance: 8.0 mm
  • Proximity Sensor Electrical Connection: 4 Pin M12 Connector
  • Shielded / Unshielded: Shielded
  • Basic Proximity Sensor Case Material: Metal
  • Case Material: Brass White Bronze Coated
  • Proximity Sensor Operating Frequency: 400 Hz
  • Operating Temp. Range: -13 Degrees to 158 Degrees F
  • Max. Current Load: 100mA
  • Description/Special Features: Overload And Short-Circuit Protection, Yellow LED Output Indication
  • Standards: CE Compliance, cUL Listed
  • Includes: (2) Lock Nuts
  • IP Rating: 67
