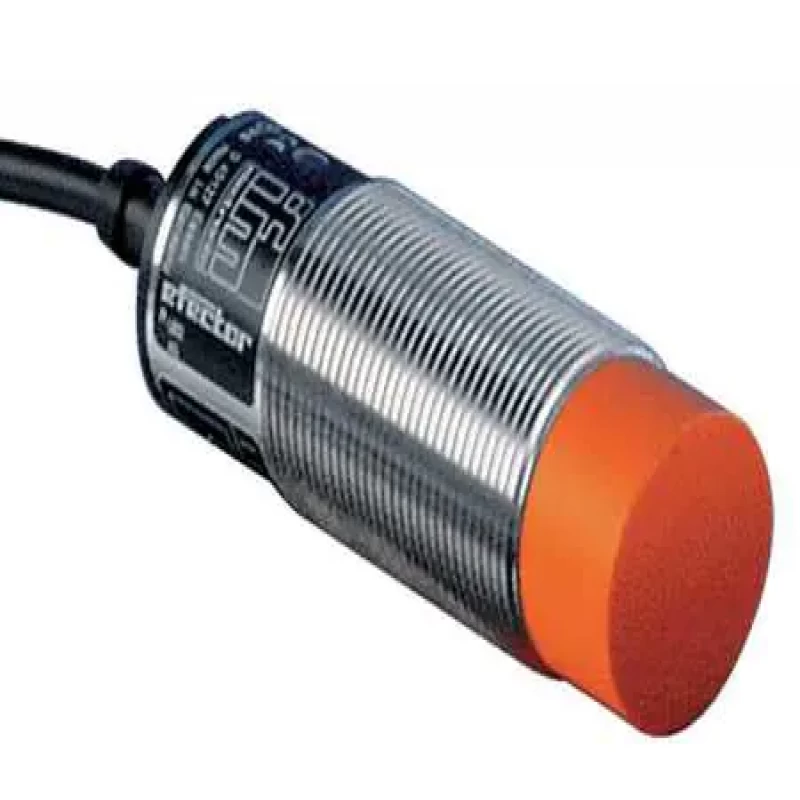

Proximity Sensor, Inductive, 15mm, NC

IFM Part No : II0275

Item: Cylindrical Proximity Sensor
Proximity Sensing Method: Inductive
Proximity Sensor Power Requirement: 20 to 250V AC/DC
Proximity Sensor Output Circuit Type: 2 Wire
Output Mode: NC
Length: 99 mm
Proximity Sensor Diameter: 30.0 mm

Cylindrical Proximity Sensor, Inductive, 30.0 mm, Proximity Sensor Power Requirement 20 to 250V AC/DC, Unshielded, Proximity Sensor Operating Frequency 25 Hz AC/50 Hz DC, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 15.0 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NC, IP Rating 67, Case Material Brass White Bronze Coated, Length 99 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 250/100mA


  • Item: Cylindrical Proximity Sensor
  • Proximity Sensing Method: Inductive
  • Proximity Sensor Power Requirement: 20 to 250V AC/DC
  • Proximity Sensor Output Circuit Type: 2 Wire
  • Output Mode: NC
  • Length: 99 mm
  • Proximity Sensor Diameter: 30.0 mm
  • Max. Detecting Distance: 15.0 mm
  • Proximity Sensor Electrical Connection: 2m Cable
  • Shielded / Unshielded: Unshielded
  • Basic Proximity Sensor Case Material: Metal
  • Case Material: Brass White Bronze Coated
  • Proximity Sensor Operating Frequency: 25 Hz AC/50 Hz DC
  • Operating Temp. Range: -13 Degrees to 158 Degrees F
  • Standards: CE Compliance, cUL Listed
  • Includes: (2) Lock Nuts
  • IP Rating: 67
  • Max. Current Load: 250/100mA
  • Description/Special Features: Red LED Output Indication
  • Length (Straight Wireway): 99 mm
