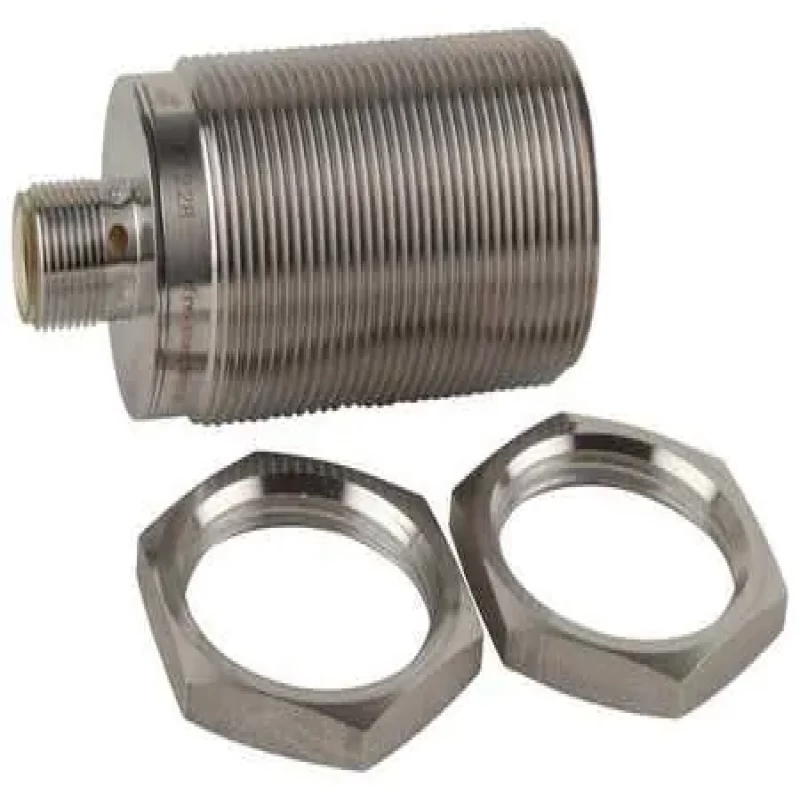

Proximity Sensor, Inductive, 10mm, NPN, NO

IFM Part No : IIT230

Item: Cylindrical Proximity Sensor

Proximity Sensor Style: Cylindrical Proximity Sensor

Proximity Sensing Method: Inductive

Cylindrical Proximity Sensor, Inductive, 30.0 mm, Proximity Sensor Power Requirement 10 to 36V DC, Shielded, Proximity Sensor Operating Frequency 50 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 10.0 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NO, IP Rating 68, 69K, Case Material 316L Stainless Steel, Length 70 mm, Operating Temp. Range 32 Degrees to 212 Degrees F, Max. Current Load 100mA

  • Item: Cylindrical Proximity Sensor
  • Proximity Sensor Style: Cylindrical Proximity Sensor
  • Proximity Sensing Method: Inductive
  • Proximity Sensor Power Requirement: 10 to 36V DC
  • Proximity Sensor Output Circuit Type: 3 Wire NPN
  • Output Mode: NO
  • Length: 70 mm
  • Proximity Sensor Diameter: 30.0 mm
  • Max. Detecting Distance: 10.0 mm
  • Proximity Sensor Electrical Connection: 4 Pin M12 Connector
  • Shielded / Unshielded: Shielded
  • Basic Proximity Sensor Case Material: Metal
  • Proximity Sensor Operating Frequency: 50 Hz
  • Case Material: 316L Stainless Steel
  • Max. Current Load: 100mA
  • IP Rating: 68, 69K
  • Description/Special Features: All Metal Housing
  • Standards: CE Compliance, cUL Listed
  • Operating Temp. Range: 32 Degrees to 212 Degrees F
  • Includes: (2) Lock Nuts
