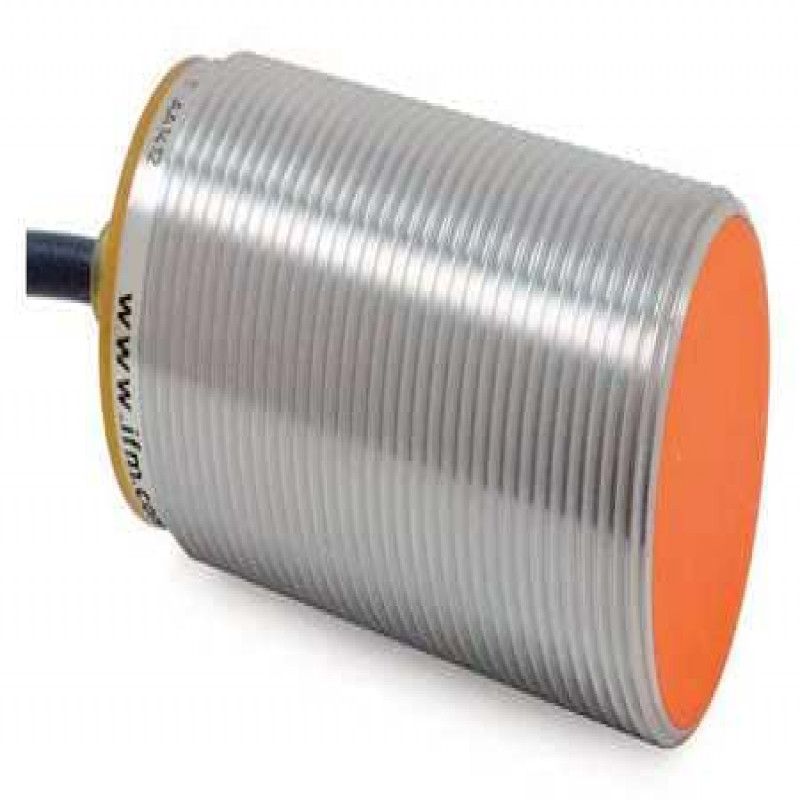

Prox Sensor, Inductive, 15mm, PNP, NO

IFM Part No : IIS238

Proximity Sensor Style: Cylindrical Proximity Sensor

Item: Cylindrical Proximity Sensor

Proximity Sensing Method: Inductive

Cylindrical Proximity Sensor, Inductive, 30.0 mm, Proximity Sensor Power Requirement 10 to 30V DC, Shielded, Proximity Sensor Operating Frequency 100 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 15.0 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, IP Rating 65, 66, 67, 68, 69K, Case Material Brass White Bronze Coated, Length 60 mm, Operating Temp. Range -40 Degrees to 185 Degrees F, Max. Current Load 100mA

  • Proximity Sensor Style: Cylindrical Proximity Sensor
  • Item: Cylindrical Proximity Sensor
  • Proximity Sensing Method: Inductive
  • Proximity Sensor Power Requirement: 10 to 30V DC
  • Proximity Sensor Output Circuit Type: 3 Wire PNP
  • Output Mode: NO
  • Length: 60 mm
  • Proximity Sensor Diameter: 30.0 mm
  • Max. Detecting Distance: 15.0 mm
  • Proximity Sensor Electrical Connection: 2m Cable
  • Basic Proximity Sensor Case Material: Metal
  • Shielded / Unshielded: Shielded
  • Case Material: Brass White Bronze Coated
  • Proximity Sensor Operating Frequency: 100 Hz
  • Standards: CUL Listed
  • Description/Special Features: Overload And Short Protection
  • IP Rating: 65, 66, 67, 68, 69K
  • Operating Temp. Range: -40 Degrees to 185 Degrees F
  • Max. Current Load: 100mA
  • Includes: (2) Lock Nuts
