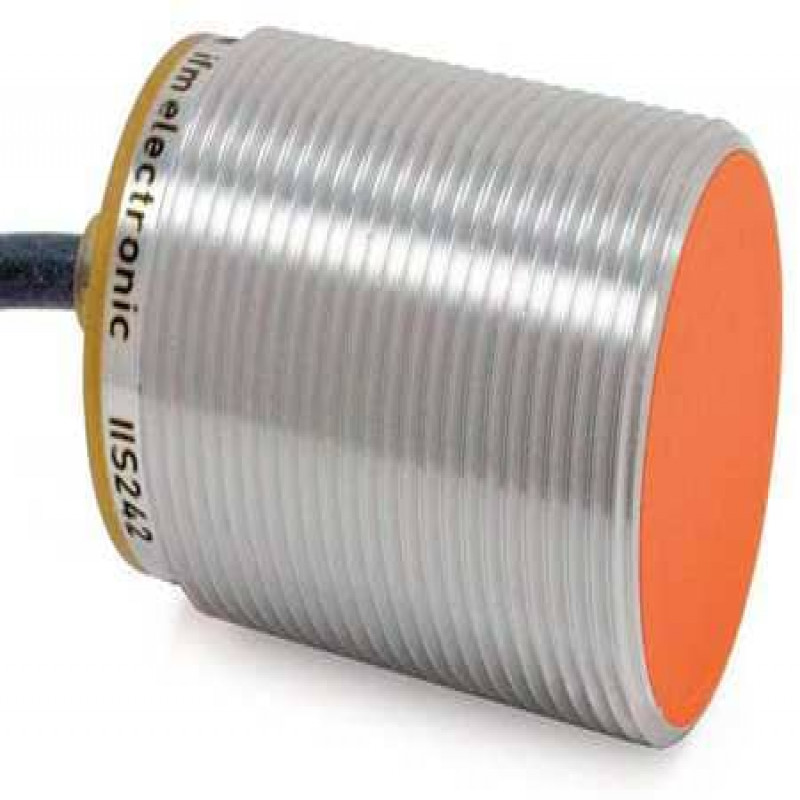

Cylindrical Proximity Sensor, Inductive, 30.0 mm, Proximity Sensor Power Requirement 10 to 30V DC, Shielded, Proximity Sensor Operating Frequency 100 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 15.0 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, IP Rating 65, 66, 67, 68, 69K, Case Material Brass White Bronze Coated, Length 40 mm, Operating Temp. Range -40 Degrees to 185 Degrees F, Max. Current Load 100mA
- Proximity Sensor Style: Cylindrical Proximity Sensor
- Item: Cylindrical Proximity Sensor
- Proximity Sensing Method: Inductive
- Proximity Sensor Power Requirement: 10 to 30V DC
- Proximity Sensor Output Circuit Type: 3 Wire NPN
- Output Mode: NO
- Length: 40 mm
- Proximity Sensor Diameter: 30.0 mm
- Max. Detecting Distance: 15.0 mm
- Proximity Sensor Electrical Connection: 2m Cable
- Shielded / Unshielded: Shielded
- Basic Proximity Sensor Case Material: Metal
- Case Material: Brass White Bronze Coated
- Proximity Sensor Operating Frequency: 100 Hz
- Description/Special Features: Overload And Short Protection
- Max. Current Load: 100mA
- IP Rating: 65, 66, 67, 68, 69K
- Operating Temp. Range: -40 Degrees to 185 Degrees F
- Standards: CUL Listed
- Includes: (2) Lock Nuts
- Length (Straight Wireway): 40 mm
