Photoelectric-Sensor-Cylindrical-Diffuse-OGT500

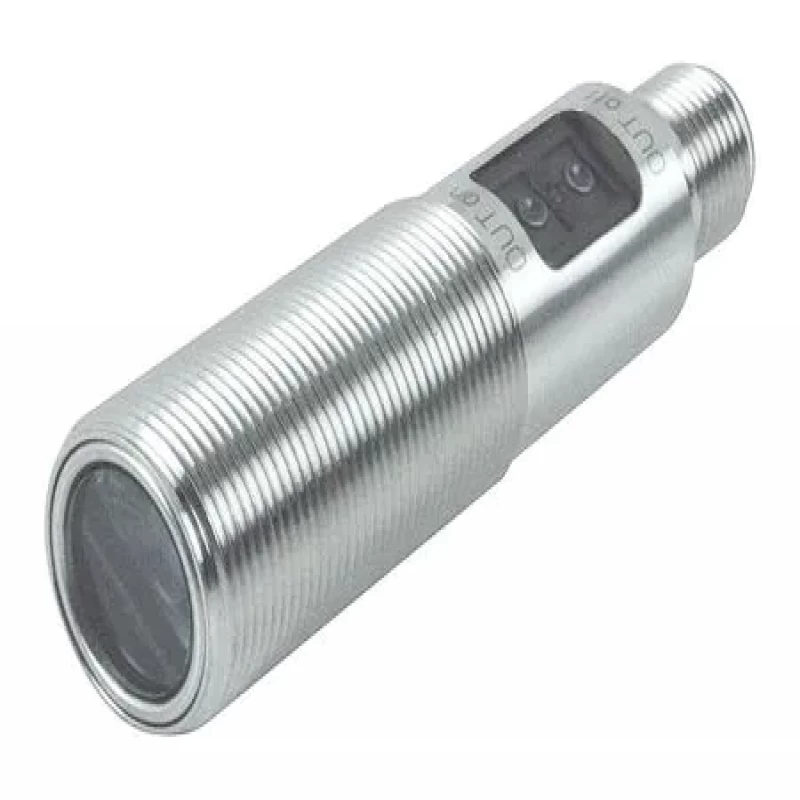

Photoelectric Sensor, Cylindrical, Diffuse

IFM Part No : OGT500

IP Rating: 67

Circuit Type: PNP

Operating Mode - Photoelectric Sensor: Selectable Light On/Dark On

Max. Load Current: 200 mA

Description
Specifications

Cylindrical Photoelectric Sensor, Sensing Method - Cylindrical Photoelectric Sensor Diffuse, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On, Diameter - Cylindrical Photoelectric Sensor 18 mm, Power Requirement - Cylindrical Photoelectric Sensor 10 to 36V DC, Electrical Connection - Cylindrical Photoelectric Sensor 4-Pin M12 Male Connector, Circuit Type - Cylindrical Photoelectric Sensor PNP, Max. Sensing Distance - Cylindrical Photoelectric Sensor 800 mm

IP Rating: 67
Circuit Type: PNP
Operating Mode - Photoelectric Sensor: Selectable Light On/Dark On
Max. Load Current: 200 mA
Operating Frequency: 2,000 Hz
Electrical Connection: M12 Connector
Power Requirement - Cylindrical Photoelectric Sensor: 10 to 36V DC
Light Source: Red LED
Length: 72.00mm
Min. Object Size: 66mm dia Light Spot
Operation Mode: Selectable Light On/Dark On
Electrical Connection - Cylindrical Photoelectric Sensor: 4-Pin M12 Male Connector
Sensing Method - Cylindrical Photoelectric Sensor: Diffuse
Sensing Method: Diffuse
NEMA Rating: IP67
Length - Cylindrical Photoelectric Sensor: 72 mm
Max. Sensing Distance - Cylindrical Photoelectric Sensor: 800 mm
Body Material: 316L Stainless Steel
Shape: Cylindrical
Max. Sensing Distance: 800mm
Circuit Type - Cylindrical Photoelectric Sensor: PNP
Power Requirement: 10 to 36VDC
Diameter - Cylindrical Photoelectric Sensor: 18 mm
Diameter: 18mm
Operating Temp. Range: -25 Degrees to 80 Degrees C

Photoelectric Sensor, Cylindrical, Diffuse
