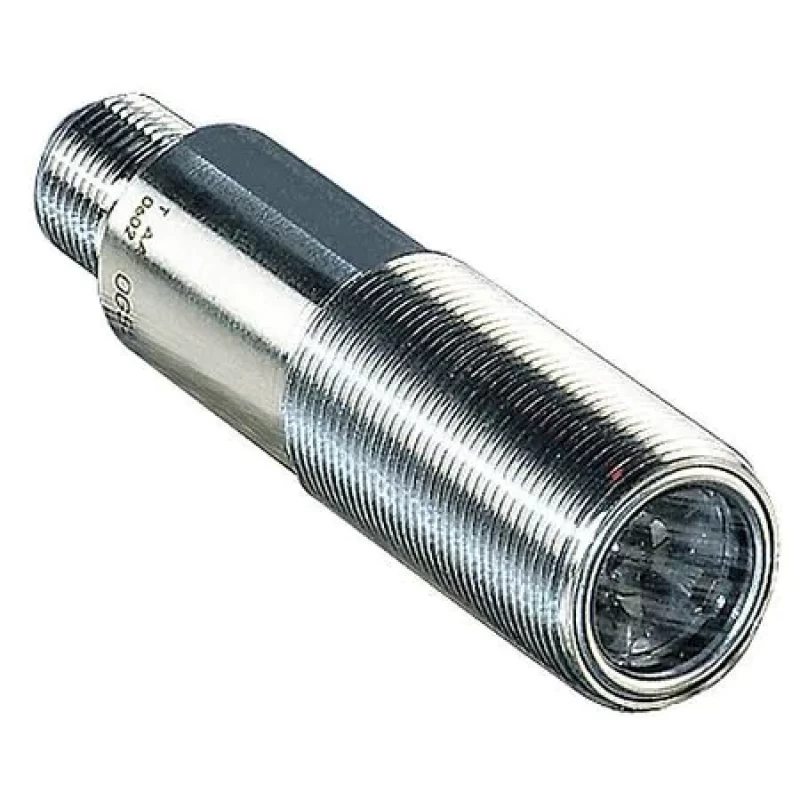

Photoelectric-Sensor-Cylindrical-Diffuse-OGH502

Photoelectric Sensor, Cylindrical, Diffuse

IFM Part No : OGH502

Item: Cylindrical Photoelectric Sensor

IP Rating: 67

Circuit Type: NPN

Description
Specifications

Cylindrical Photoelectric Sensor, Sensing Method - Cylindrical Photoelectric Sensor Diffuse, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On, Diameter - Cylindrical Photoelectric Sensor 18 mm, Power Requirement - Cylindrical Photoelectric Sensor 10 to 36V DC, Electrical Connection - Cylindrical Photoelectric Sensor 4-Pin M12 Male Connector, Circuit Type - Cylindrical Photoelectric Sensor NPN, Max. Sensing Distance - Cylindrical Photoelectric Sensor 300 mm

IP Rating: 67
Circuit Type: NPN
Operating Mode - Photoelectric Sensor: Selectable Light On/Dark On
Max. Load Current: 200 mA
Operating Frequency: 1,000 Hz
Electrical Connection: Quick Disconnect M12 Connector
Sensing Method: Diffuse
Length - Cylindrical Photoelectric Sensor: 72 mm
Circuit Type - Cylindrical Photoelectric Sensor: NPN
Power Requirement - Cylindrical Photoelectric Sensor: 10 to 36V DC
Light Source: Red LED
Power Requirement: 10 to 36VDC
Diameter: 18mm
Features: PEI Lens, Reverse Polarity and Overload Protection
Standards: CE Approval, CUL Listed
Operation Mode: Selectable Light On/Dark On
Length: 72.00mm
Sensing Method - Cylindrical Photoelectric Sensor: Diffuse
Operating Temp. Range: -25 Degrees to 80 Degrees C
Body Material: 316L Stainless Steel
Max. Sensing Distance - Cylindrical Photoelectric Sensor: 300 mm
Min. Object Size: 25mm dia Light Spot
Max. Sensing Distance: 300mm
Electrical Connection - Cylindrical Photoelectric Sensor: 4-Pin M12 Male Connector
Diameter - Cylindrical Photoelectric Sensor: 18 mm

Photoelectric Sensor, Cylindrical, Diffuse
