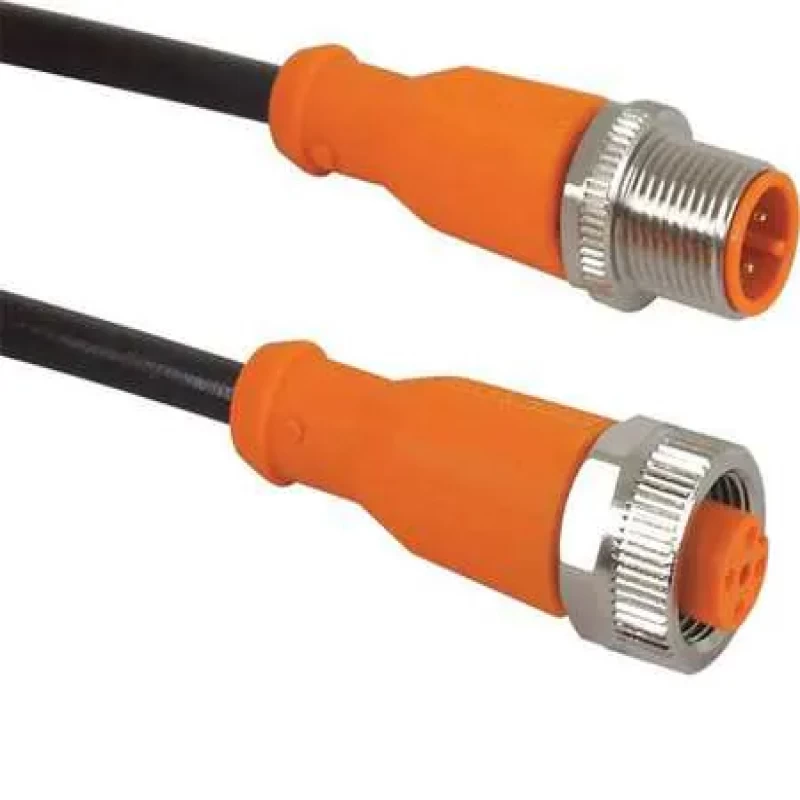

Cordset, 5 Pin, Receptacle, Female

IFM Part No : EVC012

Item: Connection Cable

Cable Length: 1m

Jacket Color: Black

Cordset, End 1 Number of Pins 5, End 1 Gender and Plug End Female Straight, End 2 Gender and Plug End Male Straight, End 1 Keyway Single, Cable Length 1 m, Jacket Color Black, Number of Conductors 4, End 1 Connection Type Receptacle, End 2 Connection Type Plug, End 2 Number of Pins 4, End 2 Thread M12, End 2 Keyway Single, Max. Voltage 250V AC/300V DC, Features Gold-Plated Contacts, Max. Amps 4 A, Wire Size 22 AWG, Jacket Material PUR, IP Rating 65,67,68,69K


  • Cable Length: 1m
  • Jacket Color: Black
  • End 1 Number of Pins: 5
  • Max. Voltage: 250VAC/300VDC
  • End 2 Number of Pins: 4
  • End 1 Thread: M12
  • End 2 Thread: M12
  • Wire Size: 22 AWG
  • End 1 Connection Type: Receptacle
  • End 2 Connection Type: Plug
  • Standards: cRUus Approval
  • End 2 Gender and Plug End: Male Straight
  • End 1 Keyway: Single
  • Temp. Range: -25 Degrees to 90 Degrees C
  • End 2 Keyway: Single
  • Number of Conductors: 4
  • End 1 Gender and Plug End: Female Straight
  • Max. Amps: 4A
  • Features: Gold Plated Contacts; Resistant To Oils And Coolants; Reliable Sealing; Robust Housing; High Shock And Vibration Resistance; Silicone Free; Halogen Free; Drag Chain Suitability
  • IP Rating: IP65, IP67, IP68, IP69K
  • Jacket Material: PUR
  • For Use With: Harsh Industrial Environment
  • Color: Black
