Safely inspect connector endfaces and inside bulkheads with our Fiber Optic Inspection Microscope. Because the image is viewed on a screen rather than directly there is no chance of eyes being damaged by laser light if the fiber is live. Images can be viewed on the screen of your choice. Part number F1CI1000 is the same microscope but a 3.5” TFT monitor is included with the kit to view the images.
MONITOR MODULE
• 3.5” TFT-LCD Screen with adjustable brightness and contrast
• 9.6V battery pack and AC power supply (4hr Life)
• Includes charger adapters for US, EU, UK
and Australian standard
HANDHELD VIDEO INSPECTION PROBE
• 400x Magnification
• Resolution – 0.5µm detectable
• Manual focus adjustment
• Kits come with SC and LC male and female (bulkhead) probe tips
FEATURES
• Fast, easy focus with one hand operation

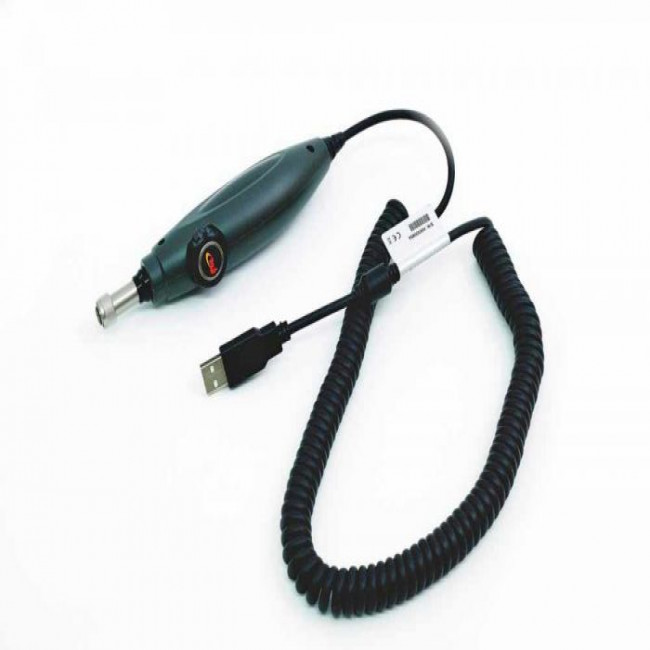

• USB version for use in laptop or PC
• Comprehensive line of tips for both
PC and APC type connectors
