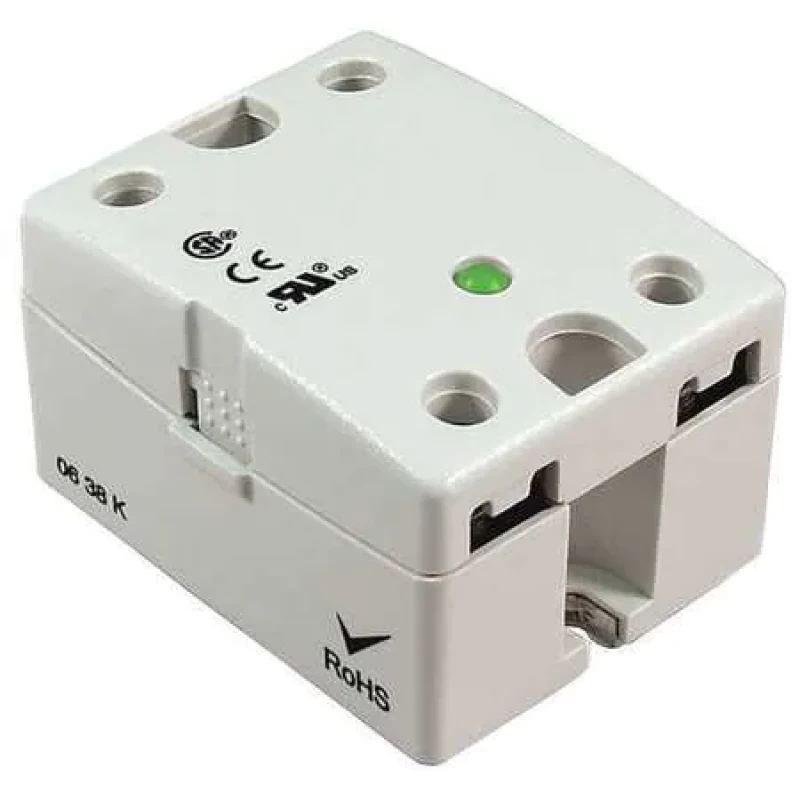

Solid State Relay, 90 to 280VAC, 75A

Dayton Part No : 1EGK5

Input or Control Voltage: 90 to 280V AC
Output or Controlled Voltage Range: 24 to 280V AC
Max. Output Amps w/Heat Sink: 75
Heat Sink: Not Included
Switch Type: SCR
Contact Form - Relay: SPST-NO
Relay Turns On At: Zero Crossing

Solid State Relay, Input or Control Voltage 90 to 280V AC, Output or Controlled Voltage Range 24 to 280V AC, Max. Output Amps w/Heat Sink 75, Heat Sink Not Included, Switch Type SCR, Contact Form - Relay SPST-NO, Relay Turns On At Zero Crossing, Input Power Consumption (Burden) 1.3 to 4.8VA, Mounting - Relay Surface, Finger Safe Yes

  • Input or Control Voltage: 90 to 280V AC
  • Output or Controlled Voltage Range: 24 to 280V AC
  • Max. Output Amps w/Heat Sink: 75
  • Heat Sink: Not Included
  • Switch Type: SCR
  • Contact Form - Relay: SPST-NO
  • Relay Turns On At: Zero Crossing
  • Input Power Consumption (Burden): 1.3 to 4.8VA
  • Mounting - Relay: Surface
  • Input Voltage: 90 to 280VAC
  • Voltage Output: 24 to 280VAC
  • Item: Solid State Relay
  • Case Color: Gray
  • Turns On At: Zero Cross
  • Body Width - Relay: 2.3 in
  • Body Depth - Relay: 1.8 in
  • Max. Output Amps Without Heat Sink: 5.0 A
