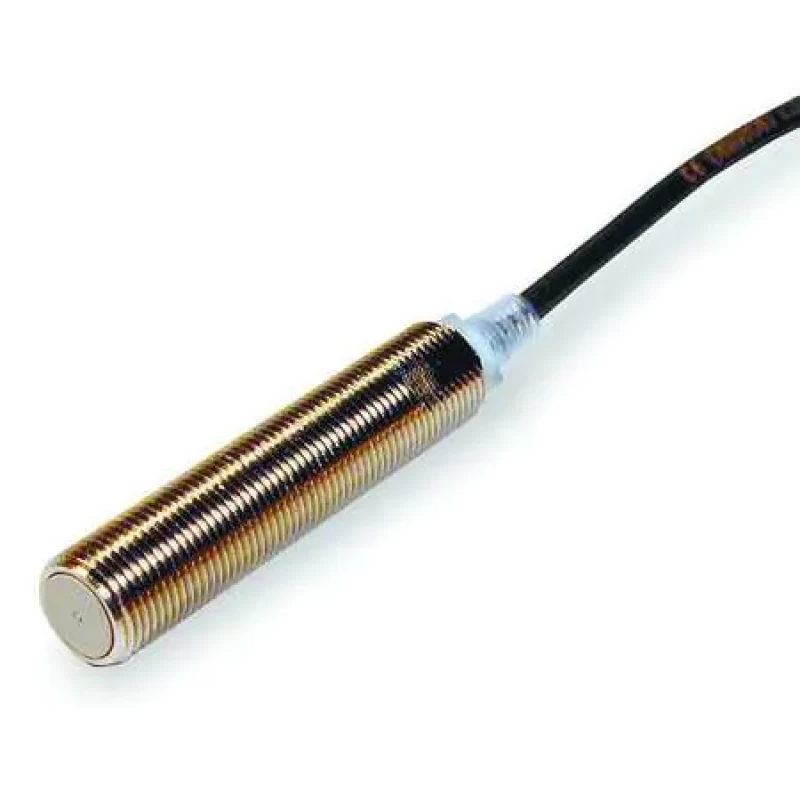

Cylindrical Proximity Sensor, Inductive, 30.0 mm, Proximity Sensor Power Requirement 12 to 24V DC, Shielded, Proximity Sensor Operating Frequency 400 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 10.0 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 1, 12, 13, 4, 6, IP Rating 67, Case Material Nickel Plated Brass, Length 41 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 100mA
- Item: Cylindrical Proximity Sensor
- Proximity Sensor Style: Cylindrical Proximity Sensor
- Proximity Sensing Method: Inductive
- Proximity Sensor Power Requirement: 12 to 24V DC
- Proximity Sensor Output Circuit Type: 2 Wire
- Output Mode: NO
- Length: 41 mm
- Proximity Sensor Diameter: 30.0 mm
- Max. Detecting Distance: 10.0 mm
- Proximity Sensor Electrical Connection: 2m Cable
- Basic Proximity Sensor Case Material: Metal
- Shielded / Unshielded: Shielded
- Proximity Sensor Operating Frequency: 400 Hz
- Case Material: Nickel Plated Brass
- Description/Special Features: Circuit Protect, LED Indication
- NEMA Rating: 1, 12, 13, 4, 6
- Max. Current Load: 100mA
- Includes: Instruction Manual
- IP Rating: 67
- Standards: CE Compliance
- Operating Temp. Range: -13 Degrees to 158 Degrees F
- Length (Straight Wireway): 41 mm
