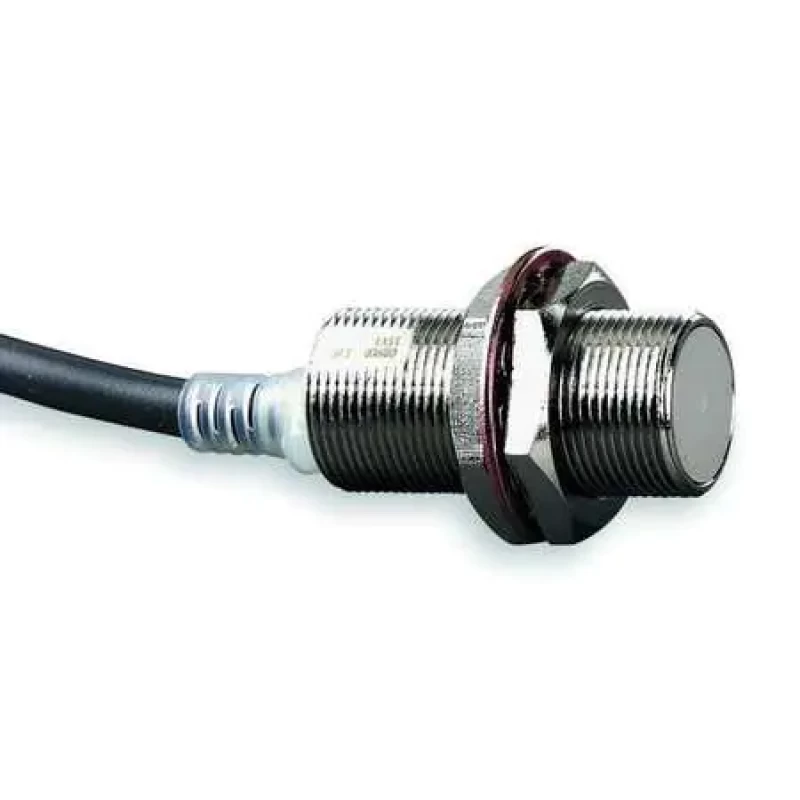

Proximity Sensor, Inductive, 30mm, NO

Omron Part No : E2E-X18MY1-US

Proximity Sensor Style: Cylindrical Proximity Sensor

Item: Cylindrical Proximity Sensor

Proximity Sensing Method: Inductive

Cylindrical Proximity Sensor, Inductive, 30.0 mm, Proximity Sensor Power Requirement 24 to 240V AC, Unshielded, Proximity Sensor Operating Frequency 25 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 18.0 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 1, 12, 13, 4, 6, IP Rating 67, Case Material Nickel Plated Brass, Length 41 mm, Operating Temp. Range -40 Degrees to 185 Degrees F, Max. Current Load 300mA


  • Item: Cylindrical Proximity Sensor
  • Proximity Sensing Method: Inductive
  • Proximity Sensor Power Requirement: 24 to 240V AC
  • Proximity Sensor Output Circuit Type: 2 Wire
  • Output Mode: NO
  • Proximity Sensor Diameter: 30.0 mm
  • Length: 41 mm
  • Max. Detecting Distance: 18.0 mm
  • Proximity Sensor Electrical Connection: 2m Cable
  • Shielded / Unshielded: Unshielded
  • Basic Proximity Sensor Case Material: Metal
  • Proximity Sensor Operating Frequency: 25 Hz
  • Case Material: Nickel Plated Brass
  • Includes: Instruction Manual
  • Standards: CE Compliance, CSA Certified, UL Listed
  • Operating Temp. Range: -40 Degrees to 185 Degrees F
  • Max. Current Load: 300mA
  • IP Rating: 67
  • Description/Special Features: LED Indication
