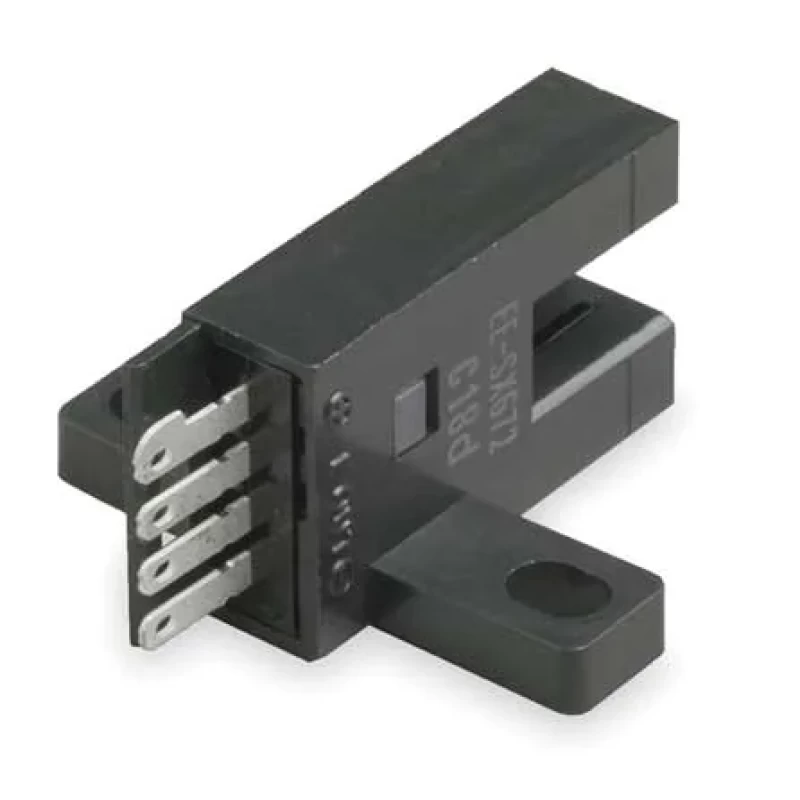

Photoelectric-Sensor-T-Slot-Thru-Beam-EE-SX672

Photoelectric Sensor, T-Slot, Thru-Beam

Omron Part No : EE-SX672

Item: Photoelectric Sensor

IP Rating: 50

Circuit Type: NPN

Description
Specifications

Photoelectric Sensor, Shape - Rectangular Photoelectric Sensor T-Slot, Sensing Method - Rectangular Photoelectric Sensor Through Beam, Power Requirement - Rectangular Photoelectric Sensor 5 to 24V DC, Output Circuit Type - Rectangular Photoelectric Sensor NPN, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On, Max. Sensing Distance - Rectangular Photoelectric Sensor 5 mm, Electrical Connection - Rectangular Photoelectric Sensor Solder Terminal

IP Rating: 50
Circuit Type: NPN
Sensing Method - Rectangular Photoelectric Sensor: Through Beam
Power Requirement - Rectangular Photoelectric Sensor: 5 to 24V DC
Width: 0.75"
Output Circuit Type - Rectangular Photoelectric Sensor: NPN
Depth: 1.11"
Operating Mode - Photoelectric Sensor: Selectable Light On/Dark On
Max. Sensing Distance - Rectangular Photoelectric Sensor: 5 mm
Max. Load Current: 100 mA
Electrical Connection - Rectangular Photoelectric Sensor: Solder Terminal
Operating Frequency: 1,000 Hz
Height - Rectangular Photoelectric Sensor: 26 mm
Electrical Connection: Spade
Min. Object Size: 2 x 0.80mm Opaque
Standards: CE Approval, CSA Certified, UL Listed
Operation Mode: Selectable Light On/Dark On
Depth - Rectangular Photoelectric Sensor: 28 mm
Power Requirement: 5 to 24VDC
Length: 1.02"
Max. Sensing Distance: 5mm
Sensing Method: Through Beam
Body Material: PBT
Operating Temp. Range: -25 Degrees to 55 Degrees C
Width - Rectangular Photoelectric Sensor: 19 mm
Light Source: Infrared LED
Shape: T-Slot
Features: No Incident Light, Operation Indicator Will Turn On When the Light Is Interrupted, Polycarbonate Cover and Emitter/Receiver

Photoelectric Sensor, T-Slot, Thru-Beam
