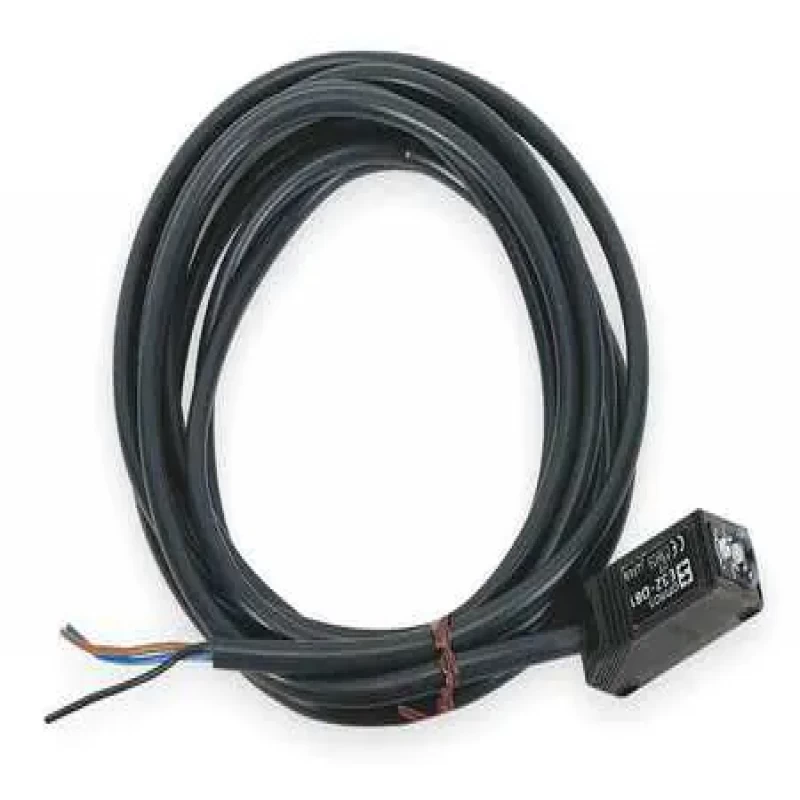

Photoelectric-Sensor-Rectangle-Thru-Beam-E3Z-T81

Photoelectric Sensor, Rectangle, Thru-Beam

Omron Part No : E3Z-T81

Item: Photoelectric Sensor

IP Rating: 67

Circuit Type: PNP

Description
Specifications

Photoelectric Sensor, Shape - Rectangular Photoelectric Sensor Rectangular, Sensing Method - Rectangular Photoelectric Sensor Through Beam Set, Power Requirement - Rectangular Photoelectric Sensor 12 to 24V DC, Output Circuit Type - Rectangular Photoelectric Sensor PNP, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On, Max. Sensing Distance - Rectangular Photoelectric Sensor 15.0 m, Electrical Connection - Rectangular Photoelectric Sensor 2m Cable

IP Rating: 67
Circuit Type: PNP
Sensing Method - Rectangular Photoelectric Sensor: Through Beam Set
Power Requirement - Rectangular Photoelectric Sensor: 12 to 24V DC
Width: 0.41"
Output Circuit Type - Rectangular Photoelectric Sensor: PNP
Depth: 0.79"
Operating Mode - Photoelectric Sensor: Selectable Light On/Dark On
Max. Load Current: 100 mA
Max. Sensing Distance - Rectangular Photoelectric Sensor: 15 m
Electrical Connection - Rectangular Photoelectric Sensor: 2m Cable
Electrical Connection: 2m cable
Height - Rectangular Photoelectric Sensor: 30 mm
Operation Mode: Selectable Light On/Dark On
Width - Rectangular Photoelectric Sensor: 10 mm
Length: 1.20"
Light Source: Infrared LED
Sensing Method: Through Beam
Depth - Rectangular Photoelectric Sensor: 20 mm
Power Requirement: 12 to 24VDC
Features: Output Short Circuit and Power Supply Reverse Polarity Protection
Standards: CE Approval
Shape: Rectangular
Response Time: 1.0 msec
Body Material: PBT
Max. Sensing Distance: 15m
Footnotes: 4
Operating Temp. Range: -25 Degrees to 55 Degrees C
Country of Origin (subject to change): Indonesia

Photoelectric Sensor, Rectangle, Thru-Beam
