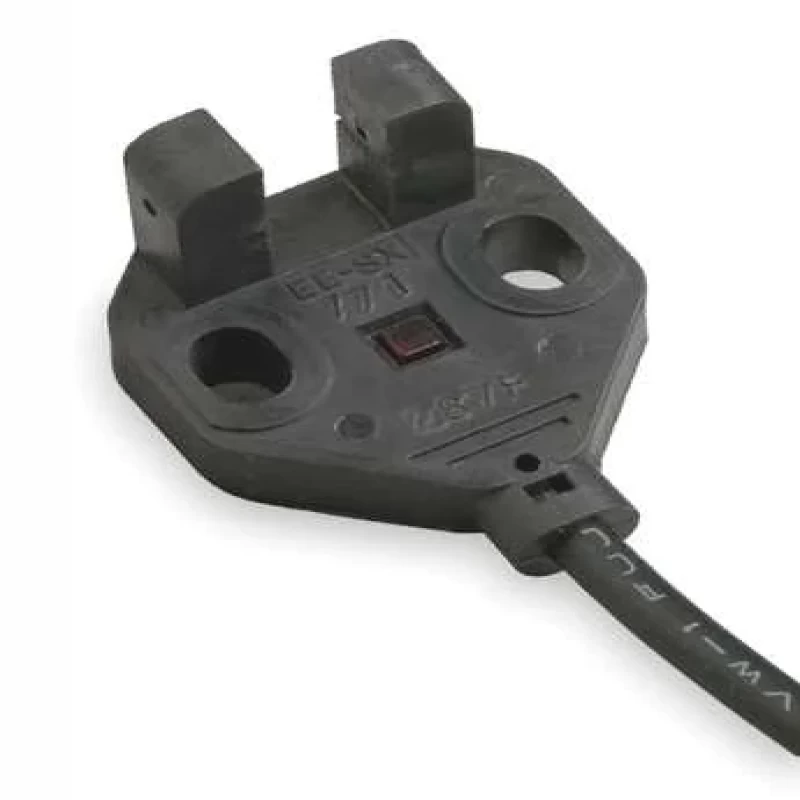

Photoelectric-Sensor-L-Slot-Thru-Beam-EE-SX771

Photoelectric Sensor, L-Slot, Thru-Beam

Omron Part No : EE-SX771

Item: Photoelectric Sensor

Sensing Method - Rectangular Photoelectric Sensor: Through Beam

IP Rating: 60

Description
Specifications

Photoelectric Sensor, Shape - Rectangular Photoelectric Sensor L-Slot, Sensing Method - Rectangular Photoelectric Sensor Through Beam, Power Requirement - Rectangular Photoelectric Sensor 5 to 24V DC, Output Circuit Type - Rectangular Photoelectric Sensor NPN, Operating Mode - Photoelectric Sensor Dark On, Max. Sensing Distance - Rectangular Photoelectric Sensor 5 mm, Electrical Connection - Rectangular Photoelectric Sensor 2m Cable, Height - Rectangular Photoelectric Sensor 21 mm

Item: Photoelectric Sensor
Sensing Method - Rectangular Photoelectric Sensor: Through Beam
IP Rating: 60
Circuit Type: NPN
Power Requirement - Rectangular Photoelectric Sensor: 5 to 24V DC
Width: 0.54"
Output Circuit Type - Rectangular Photoelectric Sensor: NPN
Depth: 0.51"
Operating Mode - Photoelectric Sensor: Dark On
Max. Load Current: 100 mA
Max. Sensing Distance - Rectangular Photoelectric Sensor: 5 mm
Operating Frequency: 1 Hz
Electrical Connection - Rectangular Photoelectric Sensor: 2m Cable
Electrical Connection: 2m cable
Height - Rectangular Photoelectric Sensor: 21 mm
Footnotes: 4
Width - Rectangular Photoelectric Sensor: 14 mm
Operating Temp. Range: -25 Degrees to 55 Degrees C
Body Material: PBT
Max. Sensing Distance: 5mm
Shape: L-Slot
Min. Object Size: 2 x 0.8mm Opaque
Depth - Rectangular Photoelectric Sensor: 13 mm
Operation Mode: Dark On
Length: 0.83"
Features: No Incident Light, Operation Indicator Will Turn On When the Light Is Interrupted, Polycarbonate Cover and Emitter/Receiver
Light Source: Infrared LED
Power Requirement: 5 to 24VDC
Standards: CE Approval, CSA Certified, UL Listed
Sensing Method: Through Beam

Photoelectric Sensor, L-Slot, Thru-Beam
