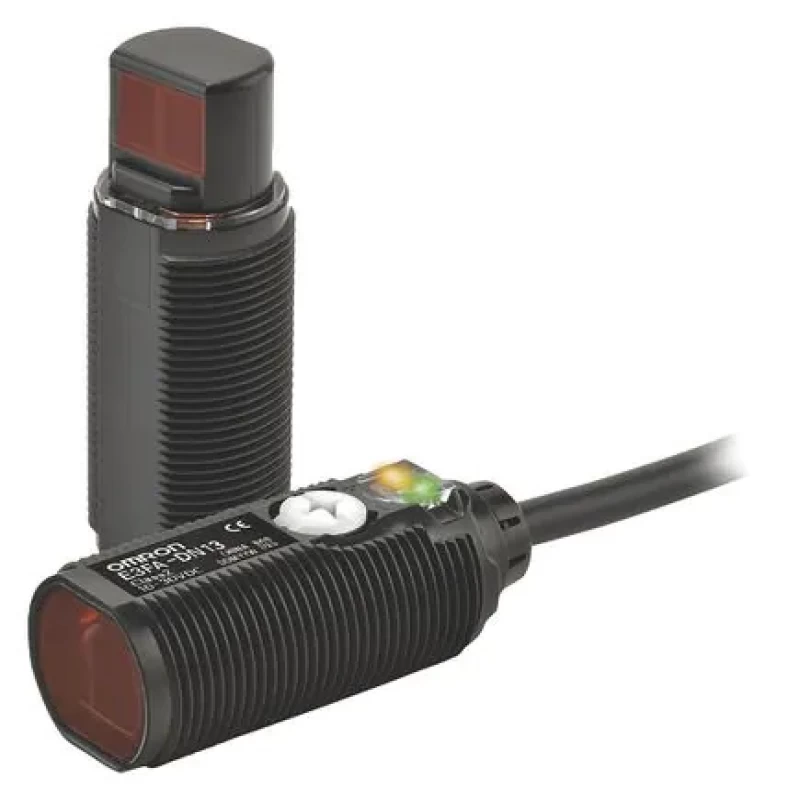

Photoelectric-Sensor-Cylindrical-Diffuse-E3FA-BN112M

Photoelectric Sensor, Cylindrical, Diffuse

Omron Part No : E3FA-BN112M

Item: Cylindrical Photoelectric Sensor

Circuit Type: NPN

IP Rating: 69K

Description
Specifications

Cylindrical Photoelectric Sensor, Sensing Method - Cylindrical Photoelectric Sensor Diffuse, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On, Diameter - Cylindrical Photoelectric Sensor 18 mm, Power Requirement - Cylindrical Photoelectric Sensor 5 to 30V DC, Electrical Connection - Cylindrical Photoelectric Sensor 2m Cable, Circuit Type - Cylindrical Photoelectric Sensor NPN, Max. Sensing Distance - Cylindrical Photoelectric Sensor 500 mm

Item: Cylindrical Photoelectric Sensor
Circuit Type: NPN
IP Rating: 69K
Width: 0.75"
Depth: 3.25"
Operating Mode - Photoelectric Sensor: Selectable Light On/Dark On
Max. Load Current: 100 mA
Electrical Connection: Pre-Wired
Shape: Cylindrical
Sensing Method: Diffuse
Operation Mode: Selectable Light On/Dark On
Electrical Connection - Cylindrical Photoelectric Sensor: 2m Cable
Light Source: Red LED
Power Requirement: 5 to 30VDC
Sensing Method - Cylindrical Photoelectric Sensor: Diffuse
Standards: CE Approval
Min. Object Size: 75mm dia Opaque
Length - Cylindrical Photoelectric Sensor: 45 mm
Diameter: 18mm
Operating Temp. Range: -25 Degrees to 55 Degrees C
Diameter - Cylindrical Photoelectric Sensor: 18 mm
NEMA Rating: IP69K
Circuit Type - Cylindrical Photoelectric Sensor: NPN
Features: High Power Red LED for Easy Sensor Alignment and Dependable Outputs In Dusty Environments
Max. Sensing Distance - Cylindrical Photoelectric Sensor: 500 mm
Length: 45mm
Body Material: ABS Plastic
Power Requirement - Cylindrical Photoelectric Sensor: 5 to 30V DC

Photoelectric Sensor, Cylindrical, Diffuse
