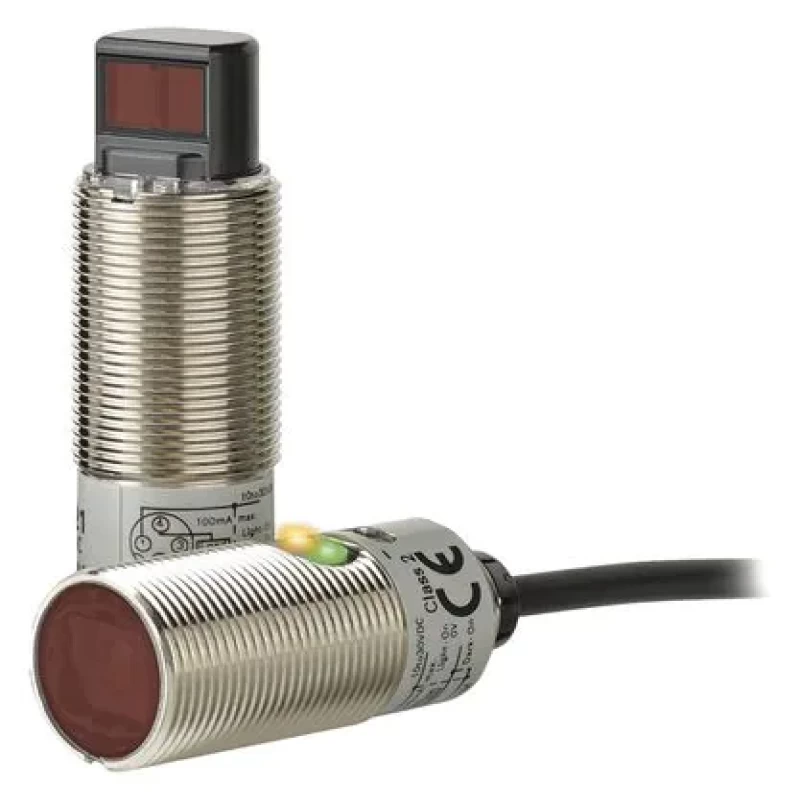

Photoelectric-Sensor-Cylindrical-Diffuse-E3FB-DP21

Photoelectric Sensor, Cylindrical, Diffuse

Omron Part No : E3FB-DP21

Item: Cylindrical Photoelectric Sensor

IP Rating: 69K

Circuit Type: PNP

Description
Specifications

Cylindrical Photoelectric Sensor, Sensing Method - Cylindrical Photoelectric Sensor Diffuse, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On, Diameter - Cylindrical Photoelectric Sensor 18 mm, Power Requirement - Cylindrical Photoelectric Sensor 5 to 30V DC, Electrical Connection - Cylindrical Photoelectric Sensor 4-Pin M12 Male Connector, Circuit Type - Cylindrical Photoelectric Sensor PNP, Max. Sensing Distance - Cylindrical Photoelectric Sensor 100 mm

Item: Cylindrical Photoelectric Sensor
IP Rating: 69K
Circuit Type: PNP
Width: 0.75"
Depth: 3.25"
Operating Mode - Photoelectric Sensor: Selectable Light On/Dark On
Max. Load Current: 100 mA
Electrical Connection: M12 Connector
Response Time: 0.5 msec
Light Source: Red LED
Diameter: 18mm
Sensing Method: Diffuse
Power Requirement - Cylindrical Photoelectric Sensor: 5 to 30V DC
Length - Cylindrical Photoelectric Sensor: 45 mm
Max. Sensing Distance: 100mm
Length: 45mm
Body Material: Nickel Plated Brass
Features: High Power Red LED for Easy Sensor Alignment and Dependable Outputs In Dusty Environments
Min. Object Size: 75mm dia Opaque
Circuit Type - Cylindrical Photoelectric Sensor: PNP
Max. Sensing Distance - Cylindrical Photoelectric Sensor: 100 mm
Operating Temp. Range: -25 Degrees to 55 Degrees C
Standards: CE Approval
Shape: Cylindrical
Diameter - Cylindrical Photoelectric Sensor: 18 mm
Electrical Connection - Cylindrical Photoelectric Sensor: 4-Pin M12 Male Connector
Power Requirement: 5 to 30VDC
NEMA Rating: IP69K
Operation Mode: Selectable Light On/Dark On
Sensing Method - Cylindrical Photoelectric Sensor: Diffuse

Photoelectric Sensor, Cylindrical, Diffuse
