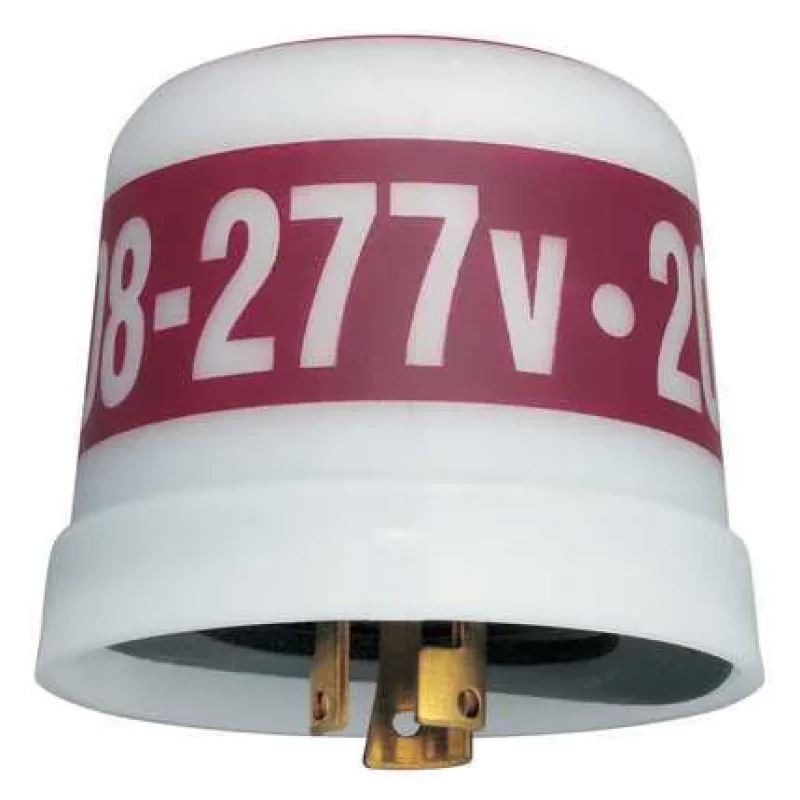

Photocontrol, Twist Lock, 208 to 277VAC

Intermatic Part No : LC4523

For Use With: Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
Mounting: Turn-Lock
Voltage: 208 to 277V AC

Photocontrol, Mounting Turn-Lock, Voltage 208 to 277V AC, Max. Wattage 4,155, Max. Incandescent Amps 15.0, Max. Ballast Amps 8.3, 0.5 Foot Candles On, 15 Foot Candles Off, Color Translucent/Red, Temp. Range -20 Degrees to 104 Degrees F, Length 2 3/4 in, Width 3 in, Depth 3 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Polypropylene, Setting Dusk to Dawn, Standards ANSI C136.10


  • For Use With: Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
  • Mounting: Turn-Lock
  • Voltage: 208 to 277V AC
  • Max. Wattage: 4,155
  • Max. Incandescent Amps: 15.0
  • Max. Ballast Amps: 8.3
  • Foot Candles On: 0.5
  • Foot Candles Off: 15
  • Color: Translucent/Red
  • Temp. Range: -20 Degrees to 104 Degrees F
  • Width: 3 in
  • Length: 2 3/4 in
  • Contact Form: SPST
  • Manufacturers Warranty Length: 2 yr
  • Standards: ANSI C136.10
  • Depth: 3 in
  • Setting: Dusk to Dawn
  • Enclosure Type: Raintight
  • Description/Special Features: UV Protection Keeps Moisture Out And Esnures Long Life
  • Housing Material: Polypropylene
  • Length (Straight Wireway): 2 3/4 in
