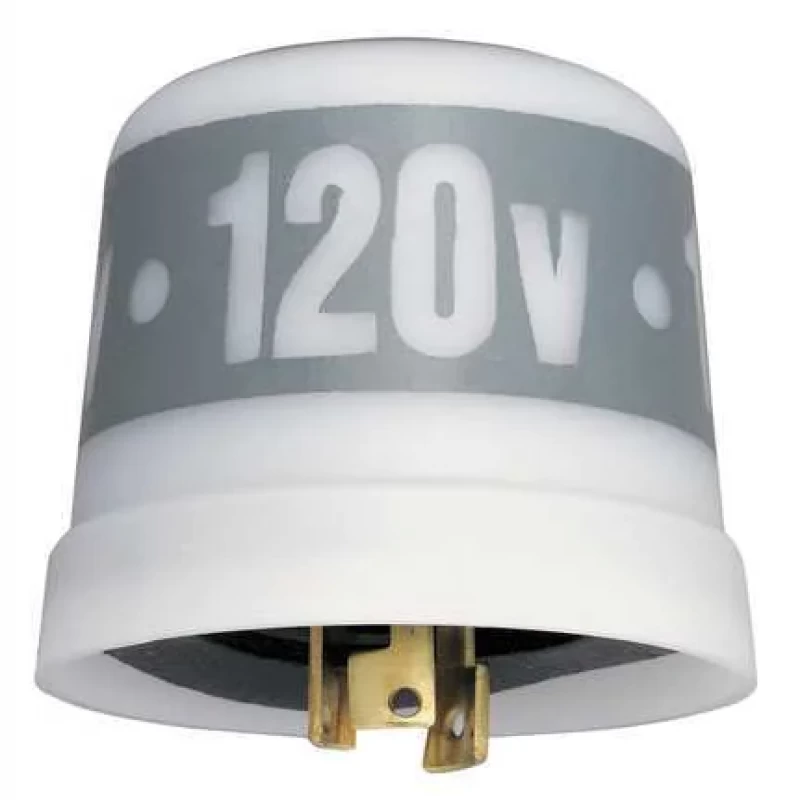

Photocontrol, Twist Lock, 120VAC

Intermatic Part No : LC4521LA

For Use With: Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
Mounting: Turn-Lock
Voltage: 120V AC

Photocontrol, Mounting Turn-Lock, Voltage 120V AC, Max. Wattage 1,000, Max. Incandescent Amps 15.0, Max. Ballast Amps 8.3, 0.5 Foot Candles On, 15 Foot Candles Off, Color Translucent/Gray, Temp. Range -40 Degrees to 158 Degrees F, Length 2 3/4 in, Width 3 in, Depth 3 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Polypropylene, Setting Dusk to Dawn, Standards CSA, UL


  • For Use With: Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
  • Mounting: Turn-Lock
  • Voltage: 120V AC
  • Max. Wattage: 1,000
  • Max. Incandescent Amps: 15.0
  • Max. Ballast Amps: 8.3
  • Foot Candles On: 0.5
  • Foot Candles Off: 15
  • Color: Translucent/Gray
  • Temp. Range: -40 Degrees to 158 Degrees F
  • Manufacturers Warranty Length: 2 yr
  • Depth: 3 in
  • Length: 2 3/4 in
  • Standards: CSA, UL
  • Description/Special Features: Integral Housing And Lens With UV Protection, Solid Brass Terminals
  • Contact Form: SPST
  • Enclosure Type: Raintight
  • Width: 3 in
  • Housing Material: Polypropylene
  • Setting: Dusk to Dawn
  • Length (Straight Wireway): 2 3/4 in
