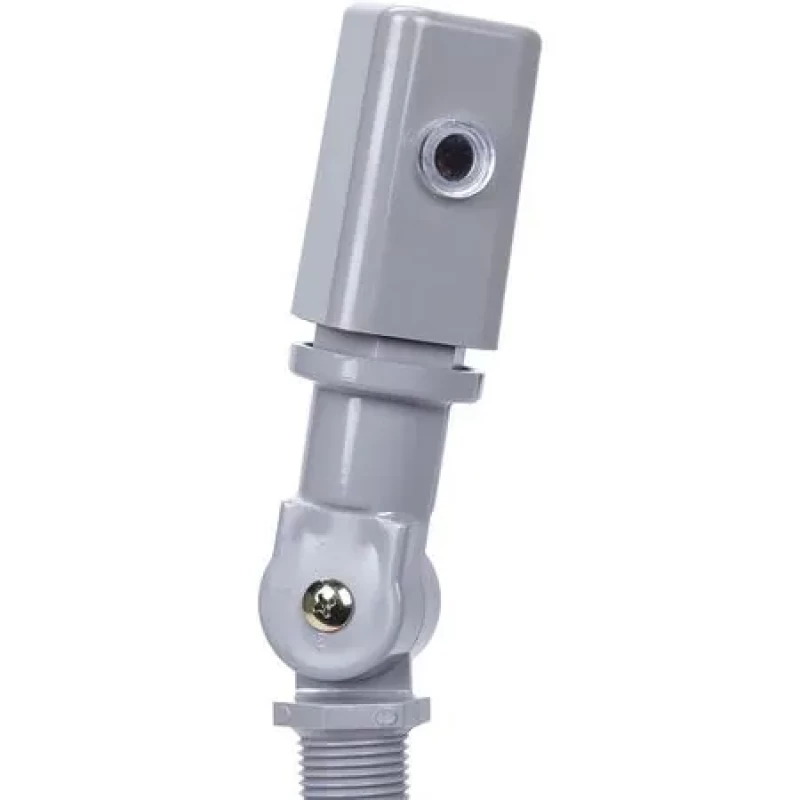

Photocontrol, Gray, Plastic, 1-1/4"W

Intermatic Part No : EK4236S

Mounting: 1/2"-14 NPSM Thread
For Use With: Flood Lights and Security Lighting, LED Fixture, Outdoor Lighting
Voltage: 105 to 305V AC

Photocontrol, Mounting 1/2 In.-14 NPSM Thread, Voltage 105 to 305V AC, Max. Wattage 1,800, Max. Incandescent Amps 15.0, Max. Ballast Amps 15.0 to 6.5, 1.5 Foot Candles On, 2.25 Foot Candles Off, Color Gray, Temp. Range -40 Degrees to 158 Degrees F, Length 5 5/8 in, Width 1 1/4 in, Depth 1 5/16 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Plastic, Setting Dusk to Dawn, Standards ANSI C136.24, ANSI/UL773A, CSA, Includes Lock Nut and Light Shield


  • Mounting: 1/2"-14 NPSM Thread
  • For Use With: Flood Lights and Security Lighting, LED Fixture, Outdoor Lighting
  • Voltage: 105 to 305V AC
  • Max. Wattage: 1,800
  • Max. Incandescent Amps: 15.0
  • Max. Ballast Amps: 15.0 to 6.5
  • Foot Candles On: 1.5
  • Foot Candles Off: 2.25
  • Color: Gray
  • Temp. Range: -40 Degrees to 158 Degrees F
  • Housing Material: Plastic
  • Description/Special Features: 10,000 ON/OFF Switching Cycles, 15 yr Design Life, LED Rated
  • Depth: 1 5/16 in
  • Length: 5 5/8 in
  • Manufacturers Warranty Length: 8 yr
  • Contact Form: SPST
  • Width: 1 1/4 in
  • Includes: Lock Nut and Light Shield
  • Enclosure Type: Raintight
  • Standards: ANSI C136.24, ANSI/UL773A, CSA
  • Setting: Dusk to Dawn
  • Length (Straight Wireway): 5 5/8 in
