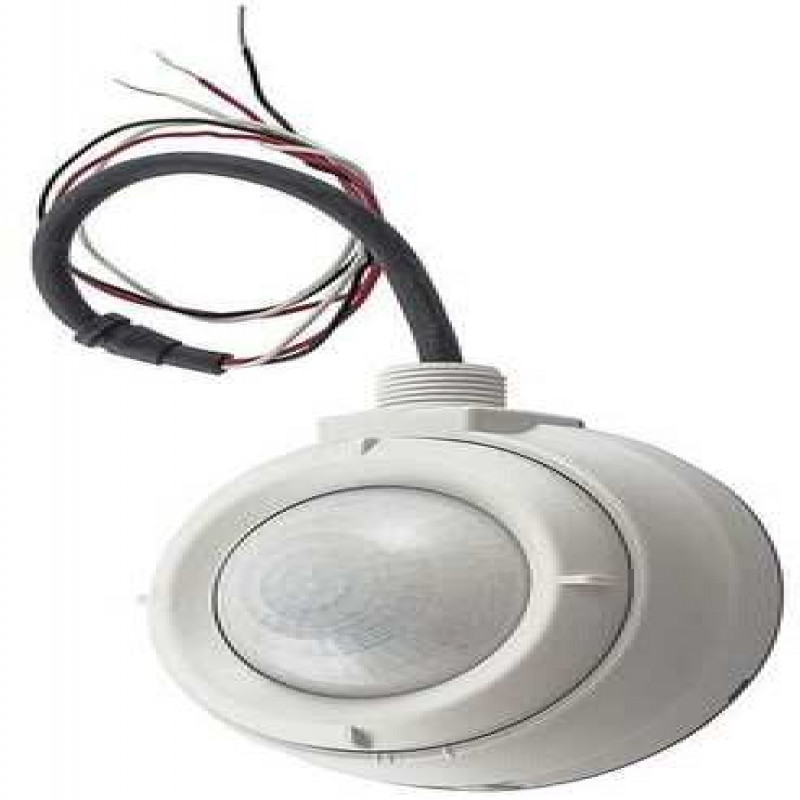

Occupancy Sensor, Item - Motion Sensing and Dimming Occupancy Sensor, Communication Method - Motion Sensing and Dimming Hard Wired, Sensing Technology Passive Infrared, Installation Location - Motion Sensor Fixture Mount, Coverage at Suggested Mounting Height 500 sq ft, Operating Voltage - Motion Sensing and Dimming 120 to 347V AC, Color - Motion Sensing and Dimming White, Time Delay - Motion Sensor 4 to 90 min, Time Delay Adjustment Method - Motion Sensor Manual
- Item - Motion Sensing and Dimming: Occupancy Sensor
- Communication Method - Motion Sensing and Dimming: Hard Wired
- Sensing Technology: Passive Infrared
- Installation Location - Motion Sensor: Fixture Mount
- Coverage at Suggested Mounting Height: 500 sq ft
- Operating Voltage - Motion Sensing and Dimming: 120 to 347V AC
- Color - Motion Sensing and Dimming: White
- Time Delay Adjustment Method - Motion Sensor: Manual
- Time Delay - Motion Sensor: 4 to 90 min
- Operating Temp. Range: 32 Degrees to 149 Degrees F
- Item: Occupancy Sensor
- Compatible With: Fluorescent Fixtures
- Standards: ETL, Title 24 Certified, UL STD 916
- Lighting Technology: Fluorescent
- Max. Capacity @ 120VAC: 800W (Fluorescent)
- Suggested Mounting Height - Motion Sensor: Up to 45 ft
- Max. Capacity @ 277VAC: 1200W (Fluorescent)
- Green Environmental Attribute: Product Contributes To Reducing Energy Consumption
- Color: White
- Description/Special Features: (1) Relay, Direct Mount, Low Bay Requires Replacement Lens
- For Use With: High Bay Fixtures
- Coverage Angle - Motion Sensor: 180 Degrees
