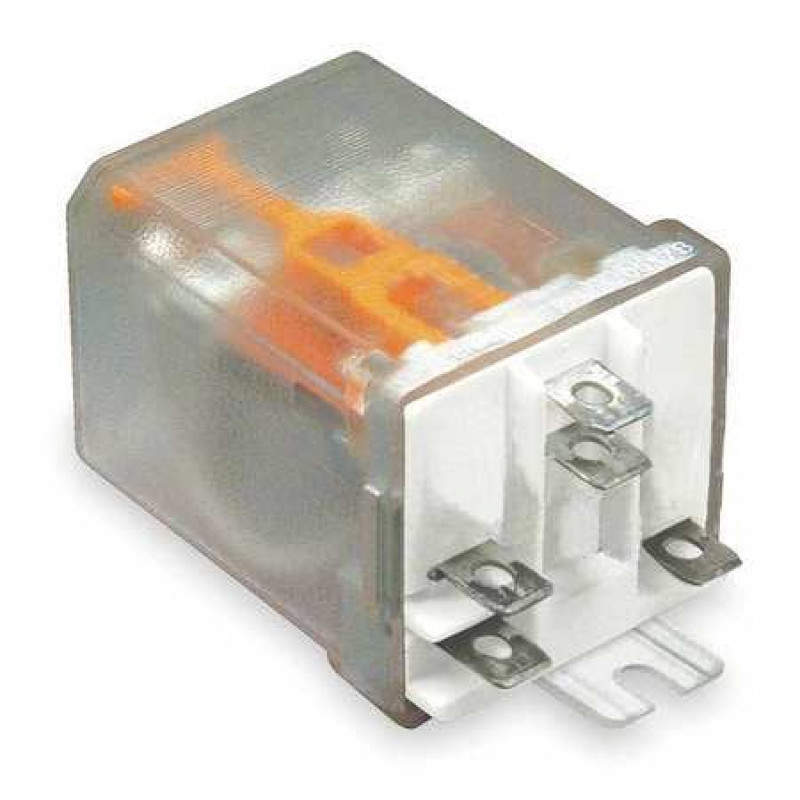

Enclosed Power Relay, 5 Pin, 12VDC, SPDT

Dayton Part No : 1EGF1

Coil Volts: 12V DC
AC Contact Rating - Relay: 25A @ 300V
DC Contact Rating - Relay: 13A @ 28V
Number of Pins - Relay: 5
Contact Form - Relay: SPDT
Mounting - Relay: Side Flange
Power Consumption - Relay: 3.5 W

  • Description
  • Specifications

Enclosed Power Relay, Coil Volts 12V DC, AC Contact Rating - Relay 25A @ 300V, DC Contact Rating - Relay 13A @ 28V, Number of Pins - Relay 5, Contact Form - Relay SPDT, Mounting - Relay Side Flange, Power Consumption - Relay 3.5 W, Contact Material Silver Alloy, Electrical Connection - Power Relay 1/4 in Tab Terminal


  • Coil Volts: 12V DC
  • AC Contact Rating - Relay: 25A @ 300V
  • DC Contact Rating - Relay: 13A @ 28V
  • Number of Pins - Relay: 5
  • Contact Form - Relay: SPDT
  • Mounting - Relay: Side Flange
  • Power Consumption - Relay: 3.5 W
  • Contact Material: Silver Alloy
  • Electrical Connection - Power Relay: 1/4 in Tab Terminal
  • Hz - Electrical: 50/60 Hz
  • Body Width - Relay: 1.5 in
  • Body Height - Relay: 1.9 in
  • Electrical Connection: 1/4" Tab Terminal
  • Overall Height - Relay: 1.9 in
  • Item: Enclosed Power Relay
  • Contact Amp Rating (Resistive): 25A @ 300VAC, 13A @ 28VDC
  • Dimensions: 1.90"H, 1.50"W, 2.90"D
