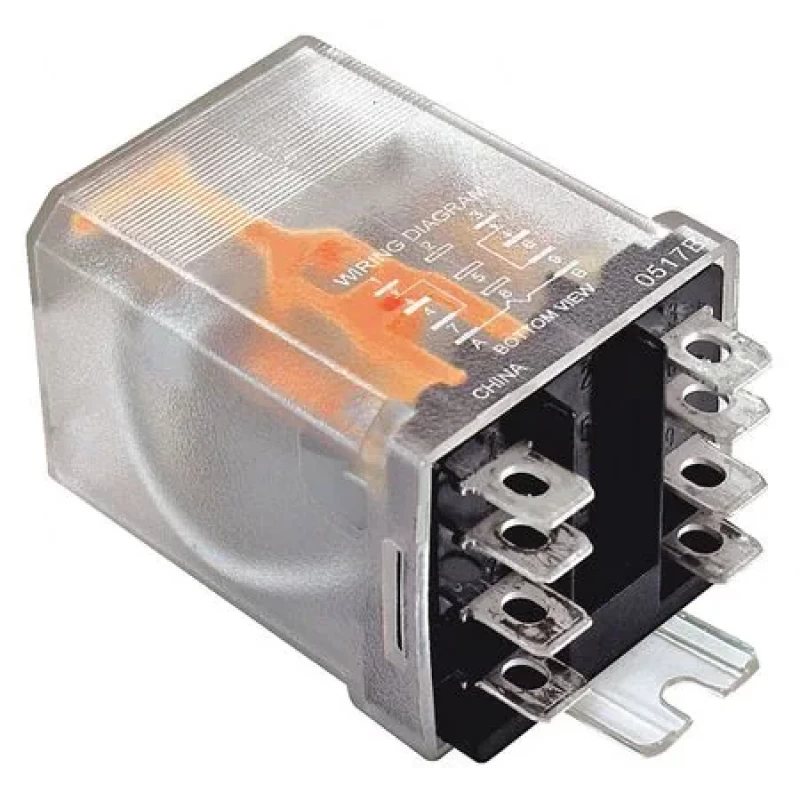

Enclosed Power Relay, 5 Pin, 120VAC, SPDT

schneider Part No : 389FXAXC1-120A

Item - Relay: Enclosed Power Relay

Coil Volts: 120V AC

AC Contact Rating - Relay: 25A @ 300V

  • Description
  • Specifications

Enclosed Power Relay, Coil Volts 120V AC, AC Contact Rating - Relay 25A @ 300V, DC Contact Rating - Relay 13A @ 28V, Number of Pins - Relay 5, Contact Form - Relay SPDT, Mounting - Relay Side Flange, Power Consumption - Relay 3.5 VA, Contact Material Silver Alloy, Electrical Connection - Power Relay 1/4 in Tab Terminal


  • Coil Volts: 120V AC
  • AC Contact Rating - Relay: 25A @ 300V
  • DC Contact Rating - Relay: 13A @ 28V
  • Number of Pins - Relay: 5
  • Contact Form - Relay: SPDT
  • Mounting - Relay: Side Flange
  • Power Consumption - Relay: 3.5 VA
  • Contact Material: Silver Alloy
  • Electrical Connection - Power Relay: 1/4 in Tab Terminal
  • Body Depth - Relay: 1.4 in
  • Dimensions: 2.90"H, 1.53"W, 1.40"D
  • Hz: 50/60
  • Standards: cURus/CSA/CE/UL Recognized File No. E43641
  • Hz - Electrical: 50/60 Hz
  • Features: 1hp @ 480-600V, Flag Indicator
