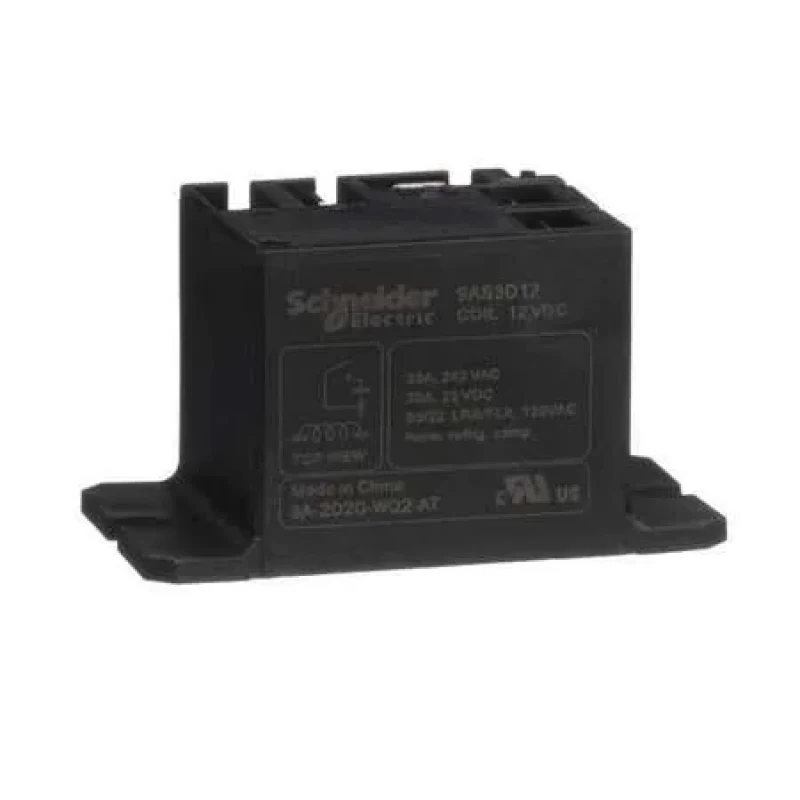

Enclosed Power Relay, 4 Pin, 12VDC, SPST-NO

schneider Part No : 9AS3D12

Item - Relay: Enclosed Power Relay

Coil Volts: 12V DC

AC Contact Rating - Relay: 30A @ 240V

  • Description
  • Specifications

Enclosed Power Relay, Coil Volts 12V DC, AC Contact Rating - Relay 30A @ 240V, DC Contact Rating - Relay 30A @ 28V, Number of Pins - Relay 4, Contact Form - Relay SPST-NO, Mounting - Relay Bottom Flange, Power Consumption - Relay 2.8 W, Contact Material Silver Alloy, Electrical Connection - Power Relay 1/4 in Tab Terminal


  • Coil Volts: 12V DC
  • AC Contact Rating - Relay: 30A @ 240V
  • DC Contact Rating - Relay: 30A @ 28V
  • Number of Pins - Relay: 4
  • Contact Form - Relay: SPST-NO
  • Mounting - Relay: Bottom Flange
  • Power Consumption - Relay: 2.8 W
  • Contact Material: Silver Alloy
  • Electrical Connection - Power Relay: 1/4 in Tab Terminal
  • Features: Class F Coil Insulation
  • Standards: cURus/UL Recognized File No. E43641
  • Contact Amp Rating (Resistive): 30A @ 240VAC/28VDC
  • Number of Poles: 1
  • Contact Form: SPST-NO
  • Overall Height - Relay: 1.1 in
