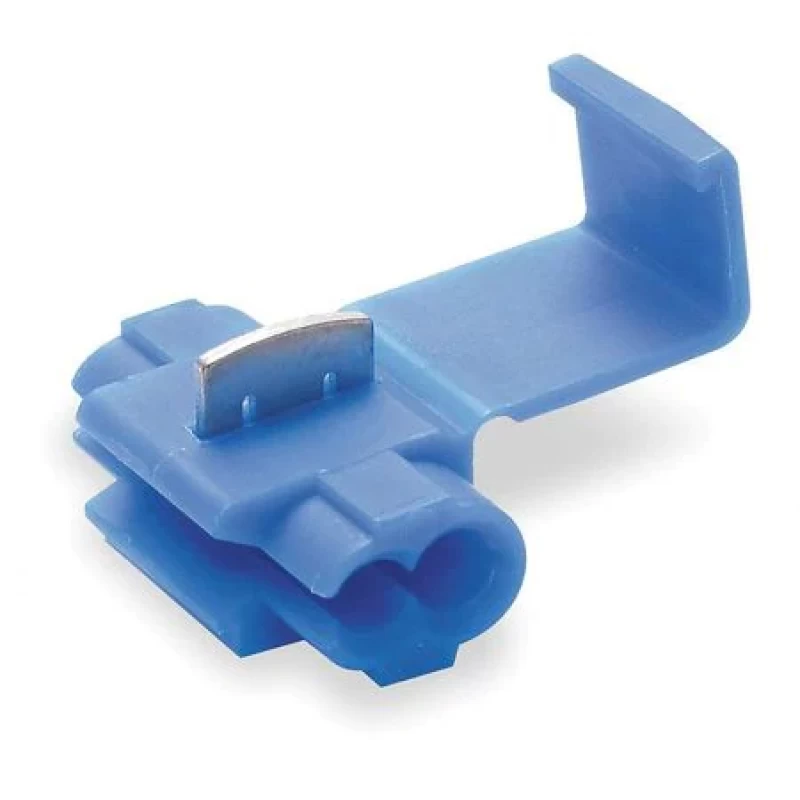

Displacement Connector, 18-14 AWG, PK50

3M Part No : 801

Color: Blue

Max. Voltage: 600 V

Application: General-Purpose Electrical Connections on An Auto, Boat, Van or Trailer

Insulation Displacement Connector, Wire Type Electrical, Connector Type Single U-Element, Fill Material No Fill, Wire Range (Run) 18 to 14 AWG, Wire Range (Tap) 18 to 14 AWG, Color Blue, Max. Insulation Dia. 0.145 in, Number of Ports 2, Application Dry Environment, Yes, Max. Voltage 600 V, Insulation Material Polypropylene, Max. Temp. 221 Degrees F, Crimping Tool 2JLF8, Standards CSA Certified, UL Listed, Package Quantity 50

  • Color: Blue
  • Max. Voltage: 600 V
  • Application: General-Purpose Electrical Connections on An Auto, Boat, Van or Trailer
  • Item: Insulation Displacement Connector
  • Wire Type: Electrical
  • Insulated / Uninsulated: Insulated
  • Number of Ports: 2
  • Crimping Tool: 2JLF8
  • Fill Material: No Fill
  • Capacity: 18 to 16 AWG Solid/Stranded, 14 AWG Stranded
  • Max. Temp.: 221 Degrees F
  • Standards: CSA Certified, UL Listed
  • Wire Range (Run): 18 to 14 AWG
  • Features: Color-Coded for Quick and Easy Identification of the Wire Size; Good Conductivity and Tin Plating for Corrosion Resistance; Ulf Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Blade Material: Brass
  • Max. Insulation Dia.: 0.145 in
  • Connector Type: Single U-Element
  • Wire Range (Tap): 18 to 14 AWG
  • Material: Insulator: Polypropylene
  • Flame Retardant: Yes
  • Insulation Material: Polypropylene
  • Country of Origin (subject to change): United States
