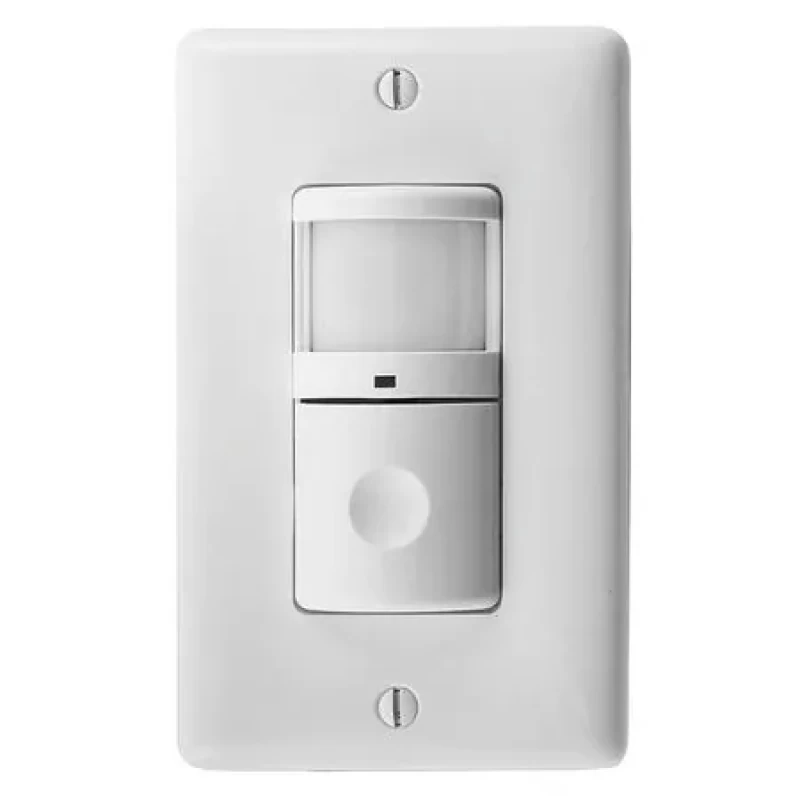

Vacancy Sensor, PIR, 1200 sq ft, White

Hubbell Part No : WS1001W

Item - Motion Sensing and Dimming: Vacancy Sensor

Communication Method - Motion Sensing and Dimming: Hard Wired

Sensing Technology: Passive Infrared

Vacancy Sensor, Item - Motion Sensing and Dimming Vacancy Sensor, Communication Method - Motion Sensing and Dimming Hard Wired, Sensing Technology Passive Infrared, Installation Location - Motion Sensor Wall Switch Box, Coverage at Suggested Mounting Height 1,200 sq ft, Operating Voltage - Motion Sensing and Dimming 120V AC, Color - Motion Sensing and Dimming White, Time Delay - Motion Sensor 20 sec to 30 min, Time Delay Adjustment Method - Motion Sensor Manual


  • Communication Method - Motion Sensing and Dimming: Hard Wired
  • Sensing Technology: Passive Infrared
  • Installation Location - Motion Sensor: Wall Switch Box
  • Coverage at Suggested Mounting Height: 1,200 sq ft
  • Operating Voltage - Motion Sensing and Dimming: 120V AC
  • Color - Motion Sensing and Dimming: White
  • Time Delay Adjustment Method - Motion Sensor: Manual
  • Coverage Angle - Motion Sensor: 180 Degrees
  • Time Delay - Motion Sensor: 20 sec to 30 min
  • Lighting Technology: Fluorescent, Incandescent, LED
  • Suggested Mounting Height - Motion Sensor: 3 ft 6 in to 4 ft 6 in
  • Sensor Type: Passive Infrared
  • Description/Special Features: Manual-On Operation, Tamper Resistant Lens
  • Green Environmental Attribute: Product Contributes To Reducing Energy Consumption
  • For Use With: Incandescent, LED and Fluorescent Lighting Loads
  • Watts @ 120V: 500/1000
  • Max. Capacity @ 120VAC: 500W (Fluorescent, Incandescent, LED)
  • Installation Type: Wall
  • Item: Vacancy Sensor
  • Viewing Angle: 180 Degrees
  • Voltage: 120VAC
  • Color: White
  • Includes: Nylon Wall Plate
  • Standards: cULus and CEC Title 24 Certified, UL Listed
  • Coverage: 1200 sq. ft.
  • Timer Range: 20 sec. to 30 min.
  • Time Delay: Manual
