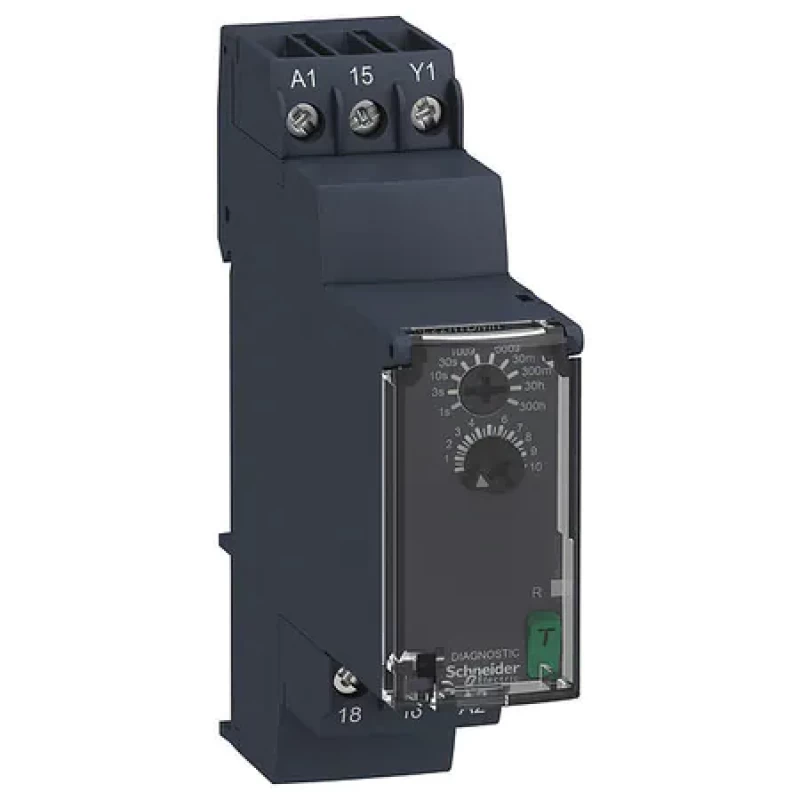

Time Delay Relay, 24 to 240VAC/DC Coil

schneider Part No : RE22R1DMR

Item - Relay: Multi-Function Timing Relay

Function - Timing Relay: Off/On Delay

Coil Volts: 24 to 240V AC/DC

  • Description
  • Specifications

Time Delay Relay, Function - Timing Relay Off/On Delay, Coil Volts 24 to 240V AC/DC, AC Contact Rating - Relay 8A @ 250V, Number of Pins - Relay 6, Mounting - Relay DIN Rail, Power Consumption - Relay 3.0 VA, Adjustment Method - Timer Rotary Dip Switch, Max. Time Setting - Timer 12 day 12 hr, Status Indicator LED, Contact Material Cadmium Free


  • Function - Timing Relay: Off/On Delay
  • Coil Volts: 24 to 240V AC/DC
  • AC Contact Rating - Relay: 8A @ 250V
  • Number of Pins - Relay: 6
  • Mounting - Relay: DIN Rail
  • Adjustment Method - Timer: Rotary Dip Switch
  • Max. Time Setting - Timer: 12 day 12 hr
  • Power Consumption - Relay: 3.0 VA
  • Body Height - Relay: 3.54 in
  • Standards: IEC 61812-1, UL 508
  • Contact Material: Cadmium Free
  • Body Width - Relay: 0.89 in
  • Status Indicator: LED
  • Body Depth - Relay: 3.03 in
  • Electrical Connection: Screw
  • Overall Height - Relay: 3.54 in
  • Hz - Electrical: 50 Hz, 60 Hz
