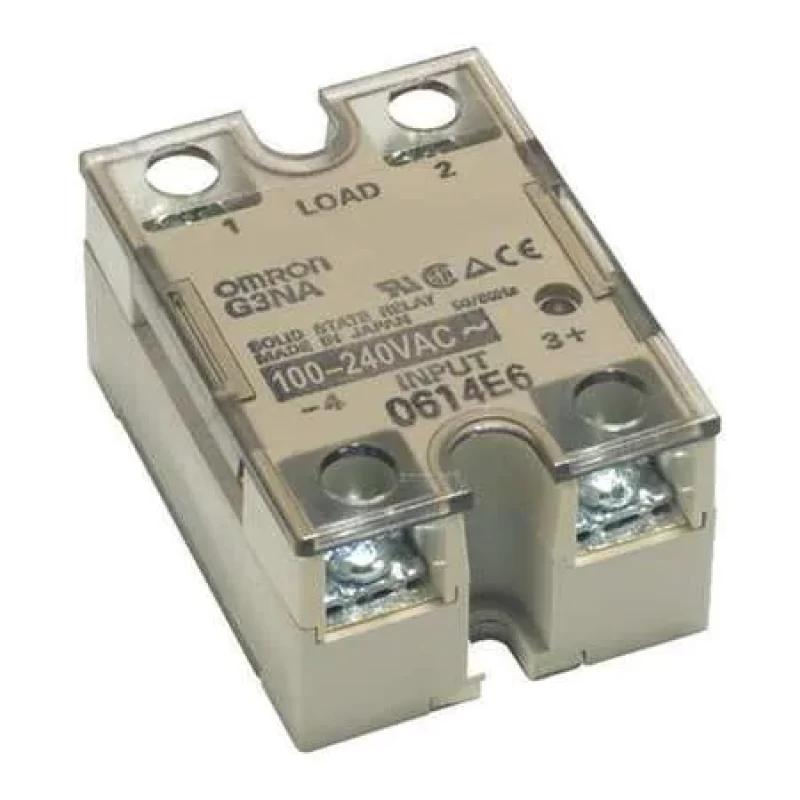

Solid State Relay, 100 to 264VAC, 75A

Omron Part No : G3NA475BUTU2AC100240

Solid State Relay, Input or Control Voltage 100 to 264VAC, Output or Controlled Voltage Range 24 to 240VAC, Max. Output Amps w/Heat Sink 75, Heat Sink Not Included, Switch Type Phototriac, Contact Form - Relay SPST-NO, Relay Turns On At Zero Crossing, Input Power Consumption (Burden) 0.8VA, Mounting - Relay Surface, Finger Safe Yes

  • Description
  • Specifications

Solid State Relay, Input or Control Voltage 100 to 264VAC, Output or Controlled Voltage Range 24 to 240VAC, Max. Output Amps w/Heat Sink 75, Heat Sink Not Included, Switch Type Phototriac, Contact Form - Relay SPST-NO, Relay Turns On At Zero Crossing, Input Power Consumption (Burden) 0.8VA, Mounting - Relay Surface, Finger Safe Yes


  • Input or Control Voltage: 100 to 264V AC
  • Output or Controlled Voltage Range: 24 to 240V AC
  • Max. Output Amps w/Heat Sink: 75
  • Heat Sink: Not Included
  • Switch Type: Phototriac
  • Contact Form - Relay: SPST-NO
  • Relay Turns On At: Zero Crossing
  • Input Power Consumption (Burden): 0.8VA
  • Mounting - Relay: Surface
  • Input Voltage: 100 to 264VAC
  • Voltage Output: 24 to 240VAC
  • Item: Solid State Relay
  • Mounting: Surface
  • Standards: CE, CSA, UL
  • Input or Control Voltage Range: 100 to 264VAC
  • Max. Output w/Heat Sink: 75A
  • Body Height - Relay: 1.18 in
