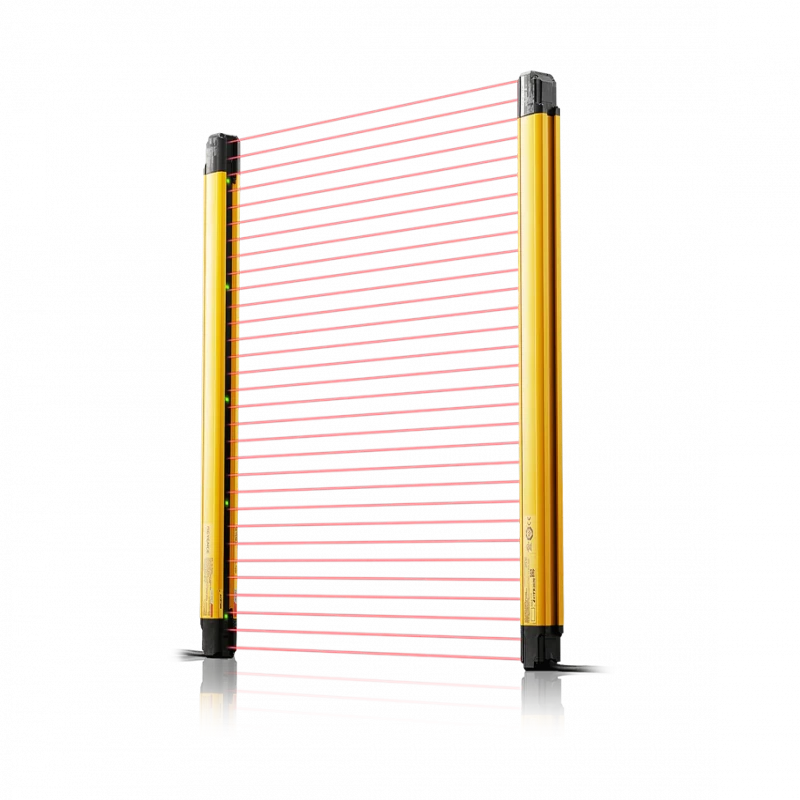

Saftey Light Curtain

Omron Part No : F3SG4SRB120025K

Item: Saftey Light Curtain

Max. Sensing Distance: 52.5 ft

Input Voltage: 24V DC

Saftey Light Curtain, Max. Sensing Distance 52.5 ft, Input Voltage 24V DC, Safety Output Ratings 300 mA @ 24V DC, Color Yellow, Housing Material Aluminum Alloy, NEMA Rating IP69K, Protected Height 47.24 in, IP Rating 65; 67; 69K, Beam Spacing 0.787 in, Number of Beams 60, Effective Aperture Angle 2.5 Degrees @ 3 m, Light Source 870nm IR LED, Response Time 13 to 65 msec; 17 to 85 msec, Overall Height 55.12 in, Width 3.23 in, Depth 2.75 in, Cable Length No Cable

  • Item: Saftey Light Curtain
  • Max. Sensing Distance: 52.5 ft
  • Input Voltage: 24V DC
  • Safety Output Ratings: 300 mA @ 24V DC
  • Color: Yellow
  • IP Rating: 65; 67; 69K
  • Housing Material: Aluminum Alloy
  • Width: 3.23 in
  • NEMA Rating: IP69K
  • Protected Height: 47.24 in
  • Number of Beams: 60
  • Depth: 2.75 in
  • Beam Spacing: 0.787 in
  • Operating Temp. Range: -22 Degrees to 131 Degrees F
  • Reset Type: Pre Reset
  • Cable Connection Transmitter: 5 Pin, M12
  • Auxillary Output Circuit Type: PNP; NPN
  • Cable Length: No Cable
  • Light Source: 870nm IR LED
  • Response Time: 13 to 65 msec; 17 to 85 msec
  • Cable Connection Receiver: 8 Pin, M12
  • Effective Aperture Angle: 2.5 Degrees @ 3 m
  • Number of Aux. Outputs: 1
  • Auxiliary Contact Rating: 100 mA @ 24V DC
  • Overall Height: 55.12 in
  • Standards: EN ISO 13849-1:2015, IEC 60529, IEC 60664-1, IEC 61496-1, IEC 61496-2, IEC 61508, IEC 61508-2, ISO 20653
