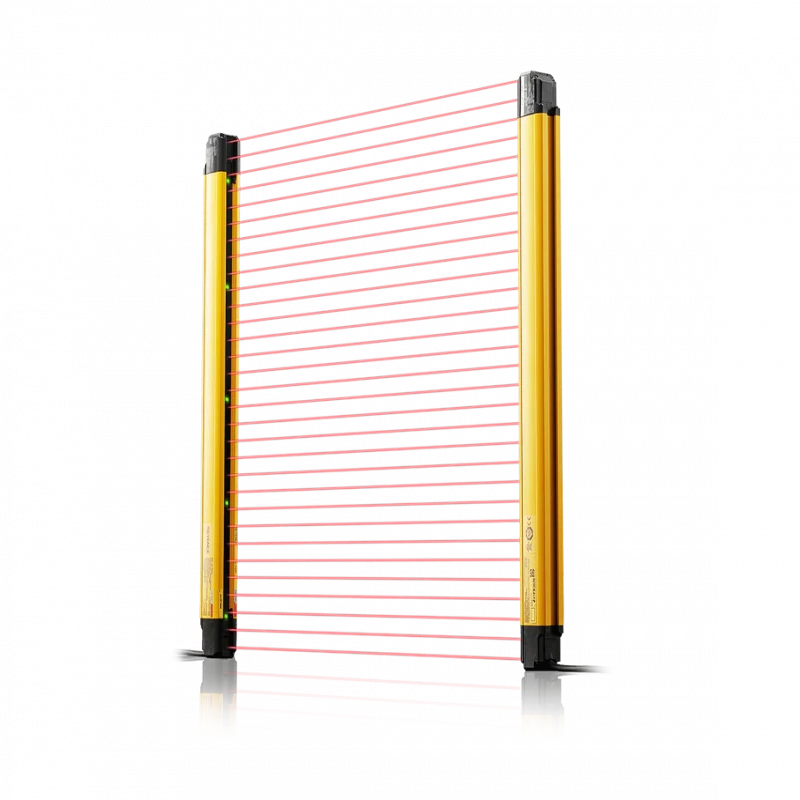

Saftey Light Curtain, Max. Sensing Distance 65.6 ft, Input Voltage 24V DC, Safety Output Ratings 300 mA @ 24V DC, Color Yellow, Housing Material Aluminum Alloy, NEMA Rating IP67G, Protected Height 38.18 in, IP Rating 65; 67; 67G, Beam Spacing 15.748 in, Number of Beams 3, Effective Aperture Angle 2.5 Degrees @ 3 m, Light Source 870nm IR LED, Response Time 8 to 40 msec; 10 to 50 msec, Overall Height 38.19 in, Width 1.26 in, Depth 1.5 in, Cable Length No Cable, Cable Connection Receiver 8 Pin, M12
- Item: Saftey Light Curtain
- Max. Sensing Distance: 65.6 ft
- Input Voltage: 24V DC
- Safety Output Ratings: 300 mA @ 24V DC
- IP Rating: 65; 67; 67G
- Color: Yellow
- Housing Material: Aluminum Alloy
- Width: 1.26 in
- NEMA Rating: IP67G
- Protected Height: 38.18 in
- Depth: 1.5 in
- Number of Beams: 3
- Beam Spacing: 15.748 in
- Overall Height: 38.19 in
- Standards: EN ISO 13849-1:2015, IEC 60529, IEC 60664-1, IEC 61496-1, IEC 61496-2, IEC 61508, IEC 61508-2
- Number of Aux. Outputs: 1
- Effective Aperture Angle: 2.5 Degrees @ 3 m
- Includes: End Cap
- Cable Length: No Cable
- Auxiliary Contact Rating: 100 mA @ 24V DC
- Response Time: 8 to 40 msec; 10 to 50 msec
- Light Source: 870nm IR LED
- Operating Temp. Range: -22 Degrees to 131 Degrees F
- Cable Connection Receiver: 8 Pin, M12
- Auxillary Output Circuit Type: PNP; NPN
- Cable Connection Transmitter: 5 Pin, M12
- Reset Type: Pre Reset
