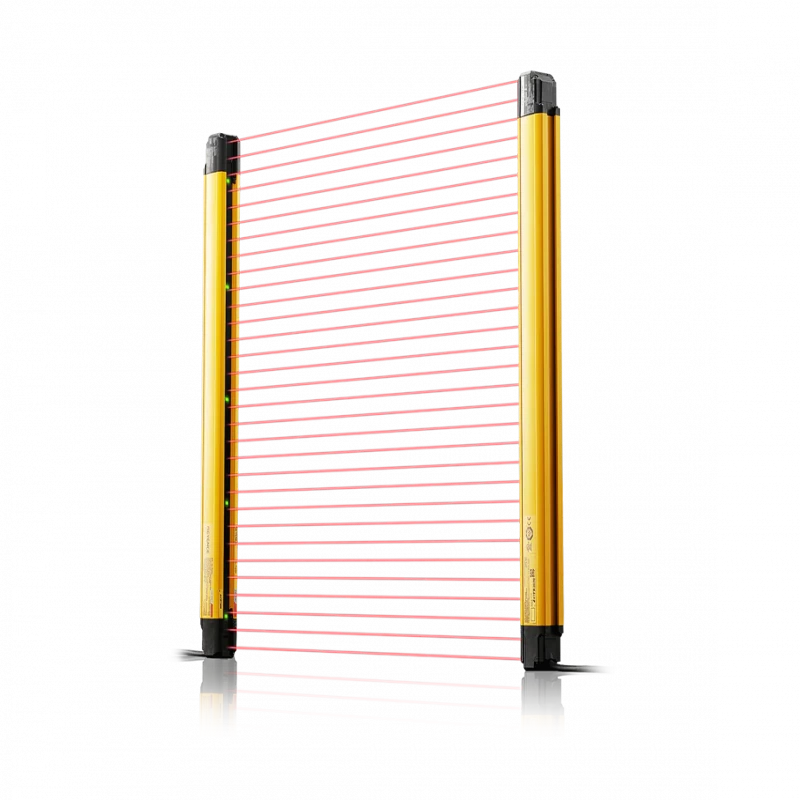

Saftey Light Curtain

Omron Part No : F3SG4PGA06702L

Item: Saftey Light Curtain

Max. Sensing Distance: 229.6 ft

Input Voltage: 24V DC

Saftey Light Curtain, Max. Sensing Distance 229.6 ft, Input Voltage 24V DC, Safety Output Ratings 300 mA @ 24V DC, Color Yellow, Housing Material Aluminum Alloy, NEMA Rating IP67G, Protected Height 26.37 in, IP Rating 65; 67; 67G, Beam Spacing 19.685 in, Number of Beams 2, Effective Aperture Angle 2.5 Degrees @ 3 m, Light Source 870nm IR LED, Response Time 8 to 40 msec; 10 to 50 msec, Overall Height 26.38 in, Width 1.26 in, Depth 1.5 in, Cable Length No Cable

  • Item: Saftey Light Curtain
  • Max. Sensing Distance: 229.6 ft
  • Input Voltage: 24V DC
  • Safety Output Ratings: 300 mA @ 24V DC
  • Color: Yellow
  • IP Rating: 65; 67; 67G
  • Housing Material: Aluminum Alloy
  • NEMA Rating: IP67G
  • Width: 1.26 in
  • Protected Height: 26.37 in
  • Depth: 1.5 in
  • Number of Beams: 2
  • Beam Spacing: 19.685 in
  • Operating Temp. Range: -22 Degrees to 131 Degrees F
  • Cable Connection Receiver: 8 Pin, M12
  • Auxiliary Contact Rating: 100 mA @ 24V DC
  • Effective Aperture Angle: 2.5 Degrees @ 3 m
  • Cable Connection Transmitter: 5 Pin, M12
  • Reset Type: Pre Reset
  • Response Time: 8 to 40 msec; 10 to 50 msec
  • Overall Height: 26.38 in
  • Includes: End Cap
  • Cable Length: No Cable
  • Number of Aux. Outputs: 1
  • Light Source: 870nm IR LED
  • Auxillary Output Circuit Type: PNP; NPN
  • Standards: EN ISO 13849-1:2015, IEC 60529, IEC 60664-1, IEC 61496-1, IEC 61496-2, IEC 61508, IEC 61508-2
  • Country of Origin (subject to change): Japan
