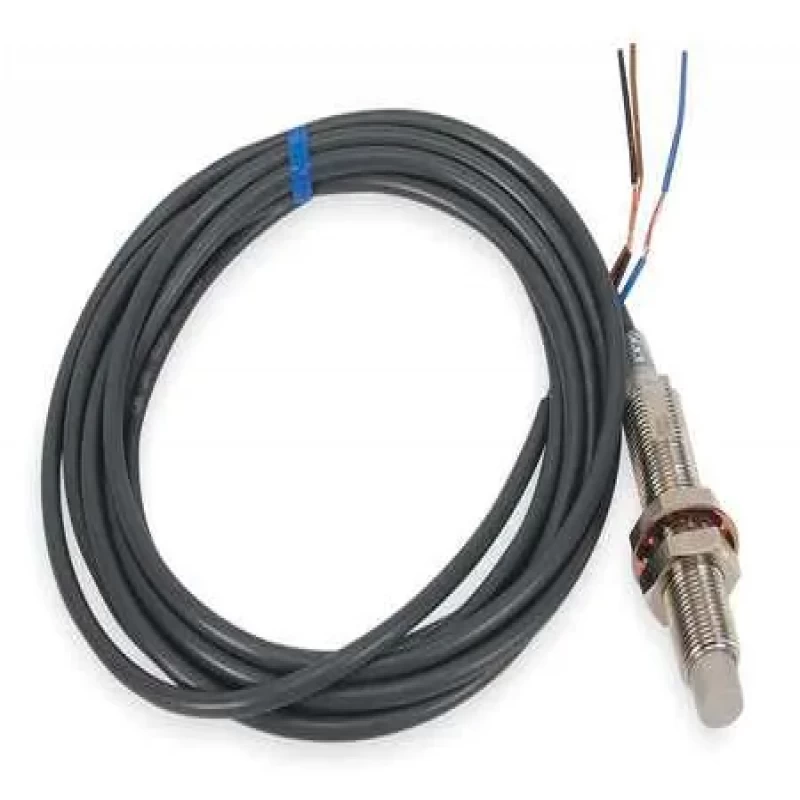

Cylindrical Proximity Sensor, Inductive, 12.0 mm, Proximity Sensor Power Requirement 24 to 240V AC, Unshielded, Proximity Sensor Operating Frequency 25 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 5.0 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 1, 12, 13, 4, 6, IP Rating 67, Case Material Nickel Plated Brass, Length 41 mm, Operating Temp. Range -40 Degrees to 185 Degrees F, Max. Current Load 200mA
Item: Cylindrical Proximity SensorProximity Sensor Style: Cylindrical Proximity SensorProximity Sensing Method: InductiveProximity Sensor Power Requirement: 24 to 240V ACProximity Sensor Output Circuit Type: 2 WireOutput Mode: NOLength: 41 mmProximity Sensor Diameter: 12.0 mmMax. Detecting Distance: 5.0 mmProximity Sensor Electrical Connection: 2m CableBasic Proximity Sensor Case Material: MetalShielded / Unshielded: UnshieldedProximity Sensor Operating Frequency: 25 HzCase Material: Nickel Plated BrassIP Rating: 67NEMA Rating: 1, 12, 13, 4, 6Standards: CSA Certified, UL ListedOperating Temp. Range: -40 Degrees to 185 Degrees FIncludes: MOUNTING HARDWAREDescription/Special Features: LED IndicationMax. Current Load: 200mALength (Straight Wireway): 41 mm
