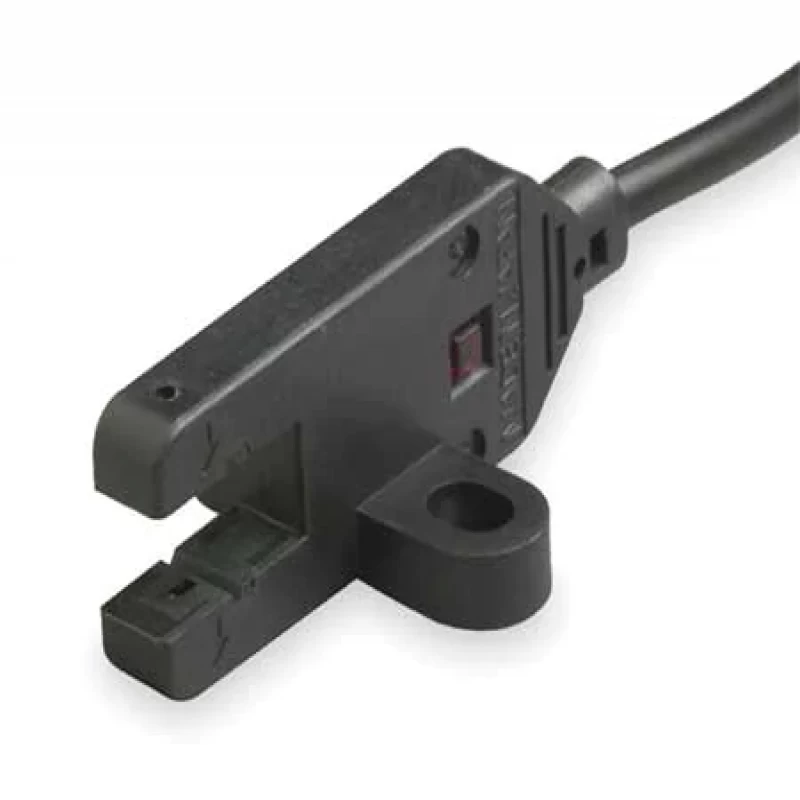

Photoelectric-Sensor-T-Slot-Thru-Beam-EE-SX872P

Photoelectric Sensor, T-Slot, Thru-Beam

Omron Part No : EE-SX872P

Item: Photoelectric Sensor

Sensing Method - Rectangular Photoelectric Sensor: Through Beam

IP Rating: 60

Description
Specifications

Photoelectric Sensor, Shape - Rectangular Photoelectric Sensor T-Slot, Sensing Method - Rectangular Photoelectric Sensor Through Beam, Power Requirement - Rectangular Photoelectric Sensor 5 to 24V DC, Output Circuit Type - Rectangular Photoelectric Sensor PNP, Operating Mode - Photoelectric Sensor Light On, Max. Sensing Distance - Rectangular Photoelectric Sensor 5 mm, Electrical Connection - Rectangular Photoelectric Sensor 2m Cable, Height - Rectangular Photoelectric Sensor 31 mm

Sensing Method - Rectangular Photoelectric Sensor: Through Beam
IP Rating: 60
Circuit Type: PNP
Power Requirement - Rectangular Photoelectric Sensor: 5 to 24V DC
Output Circuit Type - Rectangular Photoelectric Sensor: PNP
Width: 0.47"
Depth: 0.47"
Operating Mode - Photoelectric Sensor: Light On
Max. Sensing Distance - Rectangular Photoelectric Sensor: 5 mm
Max. Load Current: 50 mA
Operating Frequency: 1 Hz
Electrical Connection - Rectangular Photoelectric Sensor: 2m Cable
Electrical Connection: 2m cable
Height - Rectangular Photoelectric Sensor: 31 mm
Shape: T-Slot
Min. Object Size: 2 x 0.80mm Opaque
Operating Temp. Range: -25 Degrees to 55 Degrees C
Light Source: Infrared LED
Width - Rectangular Photoelectric Sensor: 12 mm
Power Requirement: 5 to 24VDC
Max. Sensing Distance: 5mm
Sensing Method: Through Beam
Body Material: PBT
Depth - Rectangular Photoelectric Sensor: 12 mm
Operation Mode: Light On
Length: 1.22"
Footnotes: 4
Standards: CE Approval, CSA Certified, UL Listed

Photoelectric Sensor, T-Slot, Thru-Beam
