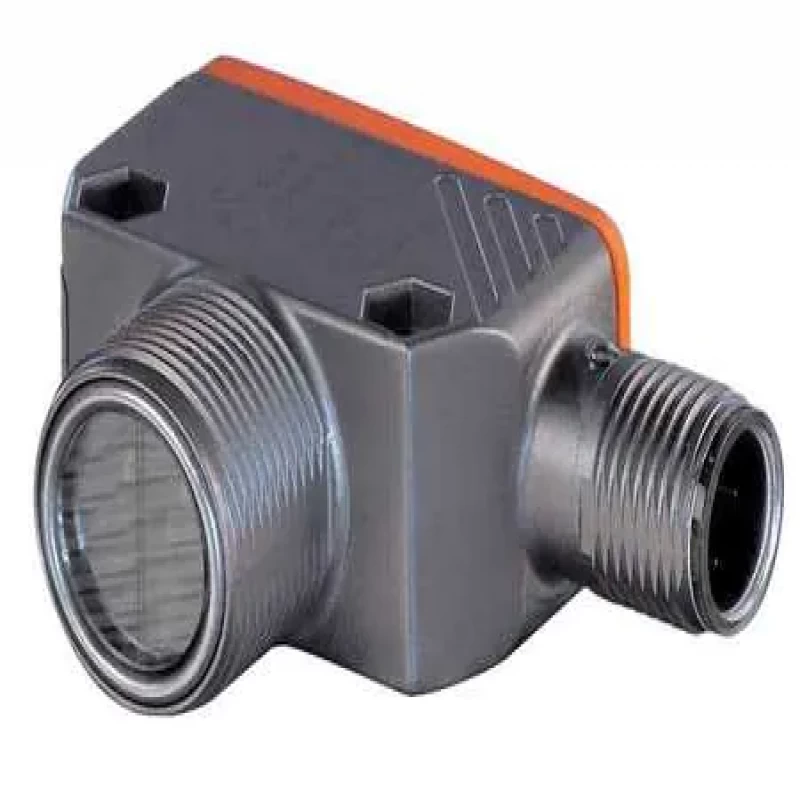

Photoelectric-Sensor-Right-Angle-Diffuse-OGH283

Photoelectric Sensor, Right Angle, Diffuse

IFM Part No : OGH283

Item: Photoelectric Sensor

IP Rating: 67

Sensing Method - Rectangular Photoelectric Sensor: Diffuse

Description
Specifications

Photoelectric Sensor, Shape - Rectangular Photoelectric Sensor Right Angle, Sensing Method - Rectangular Photoelectric Sensor Diffuse, Power Requirement - Rectangular Photoelectric Sensor 10 to 30V DC, Output Circuit Type - Rectangular Photoelectric Sensor NPN, Operating Mode - Photoelectric Sensor Light On, Max. Sensing Distance - Rectangular Photoelectric Sensor 200 mm, Electrical Connection - Rectangular Photoelectric Sensor 4-Pin M12 Male Connector

Item: Photoelectric Sensor
IP Rating: 67
Sensing Method - Rectangular Photoelectric Sensor: Diffuse
Circuit Type: NPN
Power Requirement - Rectangular Photoelectric Sensor: 10 to 30V DC
Width: 18.00mm
Output Circuit Type - Rectangular Photoelectric Sensor: NPN
Depth: 52.00mm
Operating Mode - Photoelectric Sensor: Light On
Max. Sensing Distance - Rectangular Photoelectric Sensor: 200 mm
Max. Load Current: 200 mA
Electrical Connection - Rectangular Photoelectric Sensor: 4-Pin M12 Male Connector
Operating Frequency: 1,000 Hz
Electrical Connection: Quick Disconnect M12 Connector
Height - Rectangular Photoelectric Sensor: 35 mm
Operation Mode: Light On
Sensing Method: Diffuse
Body Material: Zinc Alloy
Shape: Right Angle
Light Source: Red LED
Max. Sensing Distance: 200mm
Min. Object Size: 13mm dia Light Spot
Width - Rectangular Photoelectric Sensor: 18 mm
Length: 35.40mm
Standards: CE Approval, CUL Listed
Operating Temp. Range: -25 Degrees to 60 Degrees C
Depth - Rectangular Photoelectric Sensor: 52 mm
NEMA Rating: Not Rated
Power Requirement: 10 to 30VDC
Features: PEI Lens, Reverse Polarity and Overload Protection

Photoelectric Sensor, Right Angle, Diffuse
