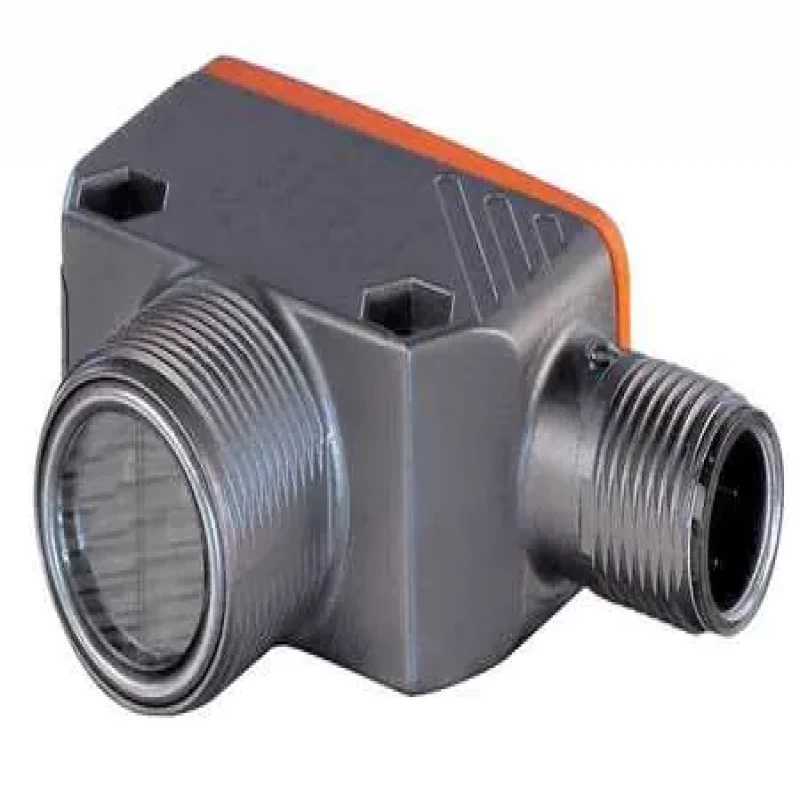

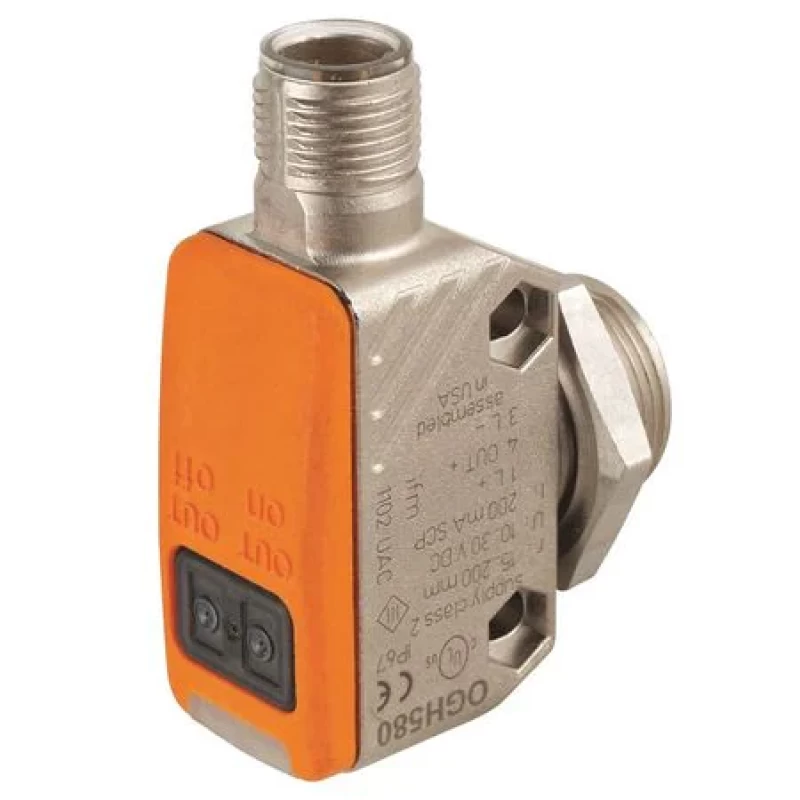

Photoelectric-Sensor-Right-Angle-Diffuse-OGH580

Photoelectric Sensor, Right Angle, Diffuse

IFM Part No : OGH580

Sensing Method - Rectangular Photoelectric Sensor: Diffuse

IP Rating: 67

Circuit Type: PNP

Power Requirement - Rectangular Photoelectric Sensor: 10 to 30V DC

Output Circuit Type - Rectangular Photoelectric Sensor: PNP

Width: 18.00mm

Description
Specifications

Photoelectric Sensor, Shape - Rectangular Photoelectric Sensor Right Angle, Sensing Method - Rectangular Photoelectric Sensor Diffuse, Power Requirement - Rectangular Photoelectric Sensor 10 to 30V DC, Output Circuit Type - Rectangular Photoelectric Sensor PNP, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On, Max. Sensing Distance - Rectangular Photoelectric Sensor 200 mm, Electrical Connection - Rectangular Photoelectric Sensor 4-Pin M12 Male Connector

Sensing Method - Rectangular Photoelectric Sensor: Diffuse
IP Rating: 67
Circuit Type: PNP
Power Requirement - Rectangular Photoelectric Sensor: 10 to 30V DC
Output Circuit Type - Rectangular Photoelectric Sensor: PNP
Width: 18.00mm
Operating Mode - Photoelectric Sensor: Selectable Light On/Dark On
Depth: 52.00mm
Max. Load Current: 200 mA
Max. Sensing Distance - Rectangular Photoelectric Sensor: 200 mm
Electrical Connection - Rectangular Photoelectric Sensor: 4-Pin M12 Male Connector
Operating Frequency: 1,000 Hz
Electrical Connection: Quick Disconnect M12 Connector
Height - Rectangular Photoelectric Sensor: 35 mm
Max. Sensing Distance: 200mm
Width - Rectangular Photoelectric Sensor: 18 mm
Length: 35.40mm

Photoelectric Sensor, Right Angle, Diffuse
