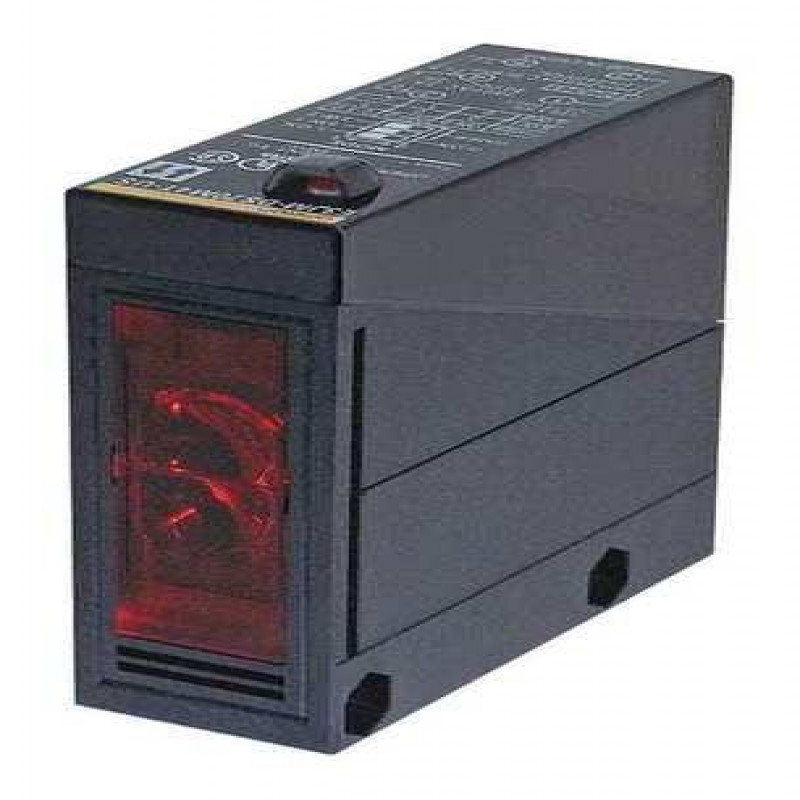

Photoelectric-Sensor-Rectangular-Diffuse-E3JMDS70M4TUS

Photoelectric Sensor, Rectangular, Diffuse

Omron Part No : E3JMDS70M4TUS

Item: Photoelectric Sensor

IP Rating: 66

Circuit Type: Relay

Description
Specifications

Photoelectric Sensor, Shape - Rectangular Photoelectric Sensor Rectangular, Sensing Method - Rectangular Photoelectric Sensor Diffuse, Power Requirement - Rectangular Photoelectric Sensor 24 to 240V AC/12 to 240V DC, Output Circuit Type - Rectangular Photoelectric Sensor Relay, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On, Max. Sensing Distance - Rectangular Photoelectric Sensor 700 mm, Electrical Connection - Rectangular Photoelectric Sensor Terminal Block

Item: Photoelectric Sensor
IP Rating: 66
Circuit Type: Relay
Sensing Method - Rectangular Photoelectric Sensor: Diffuse
Power Requirement - Rectangular Photoelectric Sensor: 24 to 240V AC/12 to 240V DC
Width: 1.0"
Output Circuit Type - Rectangular Photoelectric Sensor: Relay
Depth: 2.65"
Operating Mode - Photoelectric Sensor: Selectable Light On/Dark On
Max. Sensing Distance - Rectangular Photoelectric Sensor: 700 mm
Max. Load Current: 3 A
Electrical Connection - Rectangular Photoelectric Sensor: Terminal Block
Operating Frequency: 5/6 Hz
Height - Rectangular Photoelectric Sensor: 75 mm
Electrical Connection: Terminal Block
Width - Rectangular Photoelectric Sensor: 25 mm
Body Material: ABS
Operating Temp. Range: -25 Degrees to 55 Degrees C
NEMA Rating: IP66
Min. Object Size: 700mm dia Opaque
Features: Red Operation Indicator
Shape: Rectangular
Standards: UL/CSA
Light Source: Infrared LED
Depth - Rectangular Photoelectric Sensor: 67 mm
Response Time: 30.0 msec
Max. Sensing Distance: 700mm
Sensing Method: Diffuse
Power Requirement: 24 to 240VAC/12 to 240VDC
Operation Mode: Selectable Light On/Dark On

Photoelectric Sensor, Rectangular, Diffuse
