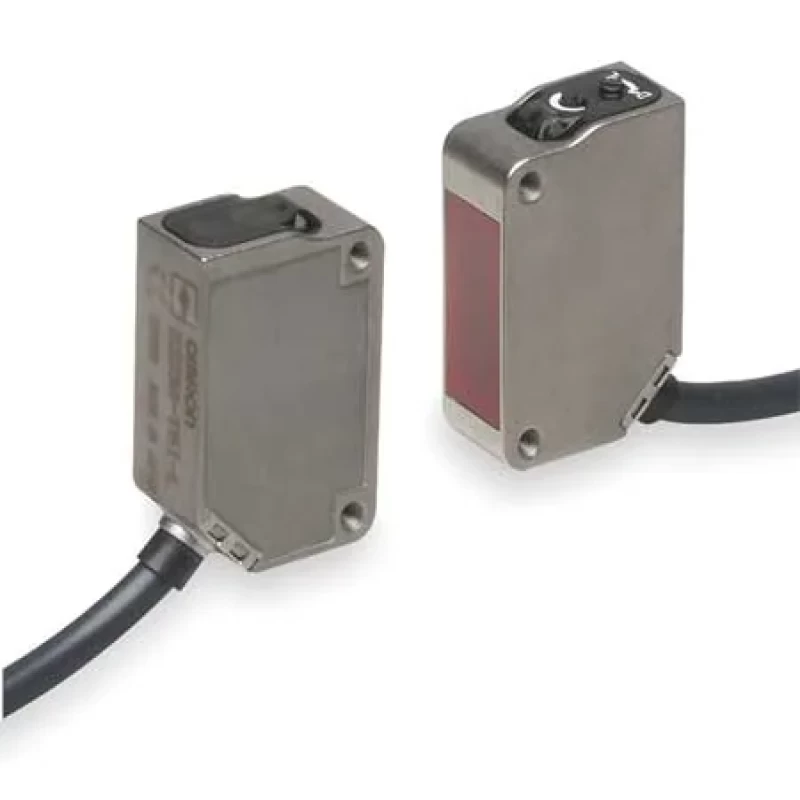

Photoelectric-Sensor-Rectangle-Thru-Beam-E3ZM-T61 2M

Photoelectric Sensor, Rectangle, Thru-Beam

Omron Part No : E3ZM-T61 2M

tem: Photoelectric Sensor

Circuit Type: NPN

Sensing Method - Rectangular Photoelectric Sensor: Through Beam Set

Description
Specifications

Photoelectric Sensor, Shape - Rectangular Photoelectric Sensor Rectangular, Sensing Method - Rectangular Photoelectric Sensor Through Beam Set, Power Requirement - Rectangular Photoelectric Sensor 10 to 30V DC, Output Circuit Type - Rectangular Photoelectric Sensor NPN, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On, Max. Sensing Distance - Rectangular Photoelectric Sensor 15.0 m, Electrical Connection - Rectangular Photoelectric Sensor 2m Cable

Item: Photoelectric Sensor
Circuit Type: NPN
Sensing Method - Rectangular Photoelectric Sensor: Through Beam Set
IP Rating: 67, 69K
Power Requirement - Rectangular Photoelectric Sensor: 10 to 30V DC
Width: 0.43"
Output Circuit Type - Rectangular Photoelectric Sensor: NPN
Operating Mode - Photoelectric Sensor: Selectable Light On/Dark On
Depth: 0.83"
Max. Load Current: 100 mA
Max. Sensing Distance - Rectangular Photoelectric Sensor: 15 m
Electrical Connection - Rectangular Photoelectric Sensor: 2m Cable
Electrical Connection: 2m cable
Height - Rectangular Photoelectric Sensor: 32 mm
Power Requirement: 10 to 30VDC
Shape: Rectangular
Operation Mode: Selectable Light On/Dark On
Footnotes: 4
Response Time: 1.0 msec
Operating Temp. Range: -25 Degrees to 55 Degrees C
Light Source: Infrared LED
Body Material: 316L Stainless Steel
Features: Output Short-Cut And Output Reverse Polarity Protection, Surge Suppressor
Min. Object Size: 12mm dia Opaque
Sensing Method: Through Beam
Length: 1.26"
Width - Rectangular Photoelectric Sensor: 11 mm
Max. Sensing Distance: 15m
Standards: CE Approval
Depth - Rectangular Photoelectric Sensor: 21 mm

Photoelectric Sensor, Rectangle, Thru-Beam
