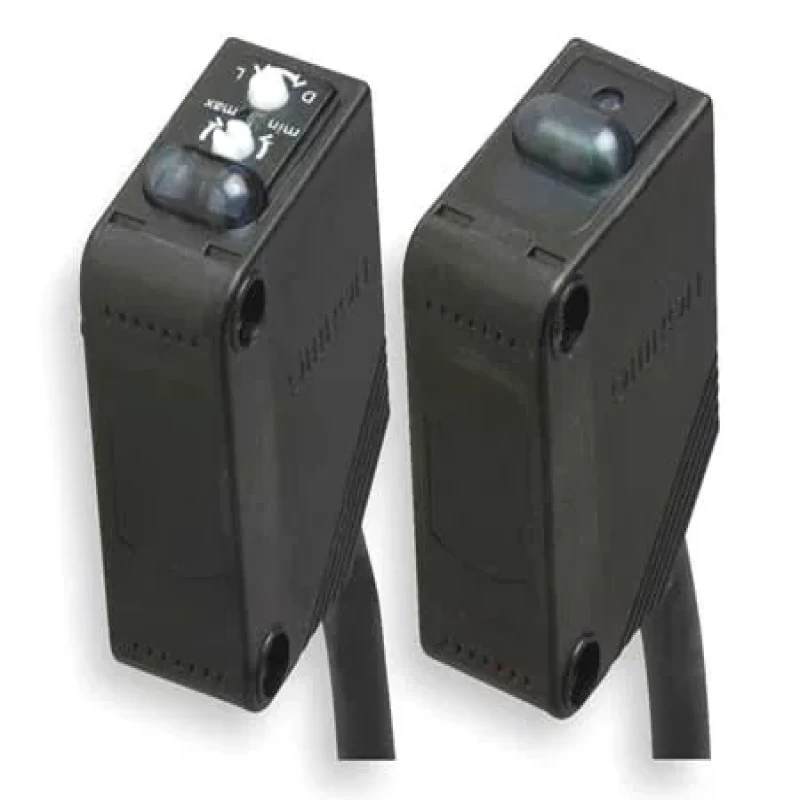

Photoelectric-Sensor-Rectangle-Thru-Beam-E3Z-T61K 2M

Photoelectric Sensor, Rectangle, Thru-Beam

Omron Part No : E3Z-T61K 2M

Item: Photoelectric Sensor

Sensing Method - Rectangular Photoelectric Sensor: Through Beam Set

IP Rating: 67

Description
Specifications

Photoelectric Sensor, Shape - Rectangular Photoelectric Sensor Rectangular, Sensing Method - Rectangular Photoelectric Sensor Through Beam Set, Power Requirement - Rectangular Photoelectric Sensor 12 to 24V DC, Output Circuit Type - Rectangular Photoelectric Sensor NPN, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On, Max. Sensing Distance - Rectangular Photoelectric Sensor 15.0 m, Electrical Connection - Rectangular Photoelectric Sensor 2m Cable

Item: Photoelectric Sensor
Sensing Method - Rectangular Photoelectric Sensor: Through Beam Set
IP Rating: 67
Circuit Type: NPN
Power Requirement - Rectangular Photoelectric Sensor: 12 to 24V DC
Output Circuit Type - Rectangular Photoelectric Sensor: NPN
Width: 0.28"
Operating Mode - Photoelectric Sensor: Selectable Light On/Dark On
Depth: 0.79"
Max. Sensing Distance - Rectangular Photoelectric Sensor: 15 m
Max. Load Current: 100 mA
Electrical Connection - Rectangular Photoelectric Sensor: 2m Cable
Electrical Connection: 2m cable
Height - Rectangular Photoelectric Sensor: 31 mm
Depth - Rectangular Photoelectric Sensor: 20 mm
Length: 1.22"
Footnotes: 4,9
Features: Output Short Circuit And Power Supply Reverse Polarity Protection, Sensitivity Adjustment
Operation Mode: Selectable Light On/Dark On
Body Material: PBT
Max. Sensing Distance: 15m
Operating Temp. Range: -25 Degrees to 55 Degrees C
Min. Object Size: 12mm dia Opaque
Width - Rectangular Photoelectric Sensor: 7 mm
Light Source: Infrared LED
Shape: Rectangular
Standards: CE Approval
Response Time: 1.0 msec
Power Requirement: 12 to 24VDC
Sensing Method: Through Beam

Photoelectric Sensor, Rectangle, Thru-Beam
