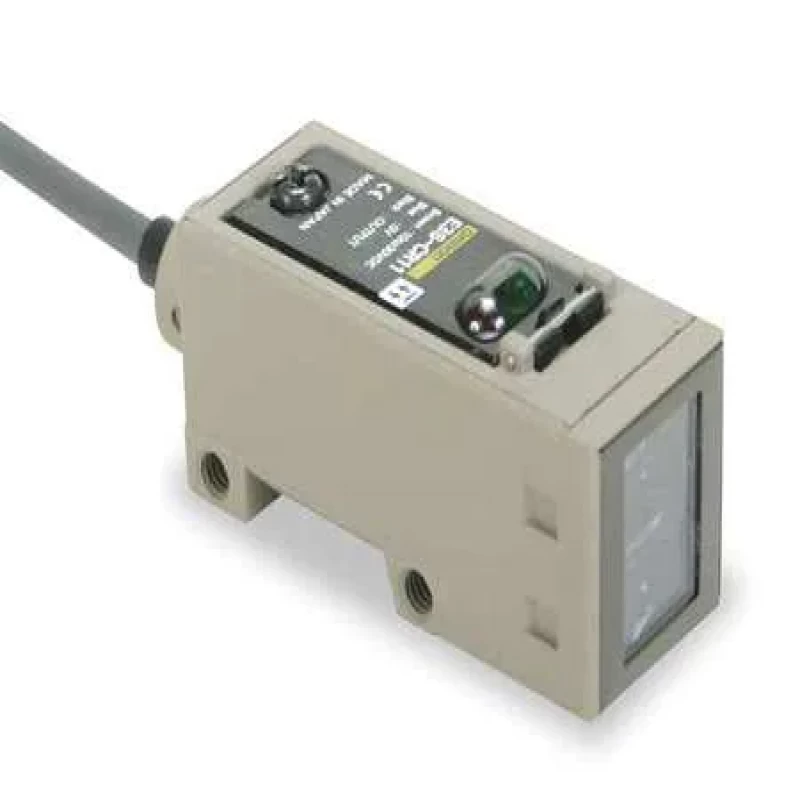

Photoelectric-Sensor-Rectangl-Reflective-E3SCR11

Photoelectric Sensor, Rectangl, Reflective

Omron Part No : E3SCR11

Item: Photoelectric Sensor

Sensing Method - Rectangular Photoelectric Sensor: Retroreflective

Circuit Type: NPN/PNP

Description
Specifications

Photoelectric Sensor, Shape - Rectangular Photoelectric Sensor Rectangular, Sensing Method - Rectangular Photoelectric Sensor Retroreflective, Power Requirement - Rectangular Photoelectric Sensor 10 to 30V DC, Output Circuit Type - Rectangular Photoelectric Sensor NPN/PNP, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On, Max. Sensing Distance - Rectangular Photoelectric Sensor 3.0 m, Electrical Connection - Rectangular Photoelectric Sensor 2m Cable

Sensing Method - Rectangular Photoelectric Sensor: Retroreflective
Circuit Type: NPN/PNP
IP Rating: 67
Power Requirement - Rectangular Photoelectric Sensor: 10 to 30V DC
Output Circuit Type - Rectangular Photoelectric Sensor: NPN/PNP
Width: 0.91"
Depth: 1.97"
Operating Mode - Photoelectric Sensor: Selectable Light On/Dark On
Max. Load Current: 100 mA
Max. Sensing Distance - Rectangular Photoelectric Sensor: 3.0 m
Electrical Connection - Rectangular Photoelectric Sensor: 2m Cable
Height - Rectangular Photoelectric Sensor: 20 mm
Electrical Connection: 2m cable
Width - Rectangular Photoelectric Sensor: 23 mm
Sensing Method: Retroreflective
Light Source: Red LED
Footnotes: 2,3,4
Min. Object Size: 75mm dia Opaque
Operation Mode: Selectable Light On/Dark On
Length: 0.80"
Depth - Rectangular Photoelectric Sensor: 50 mm
Shape: Rectangular
Features: Output Short-Cut And Output Reverse Polarity Protection, Surge Suppressor
Response Time: 1.0 msec
Standards: CE Approval
Operating Temp. Range: -25 Degrees to 55 Degrees C
Max. Sensing Distance: 3m
NEMA Rating: 4X, 6P
Power Requirement: 10 to 30VDC

Photoelectric Sensor, Rectangl, Reflective
