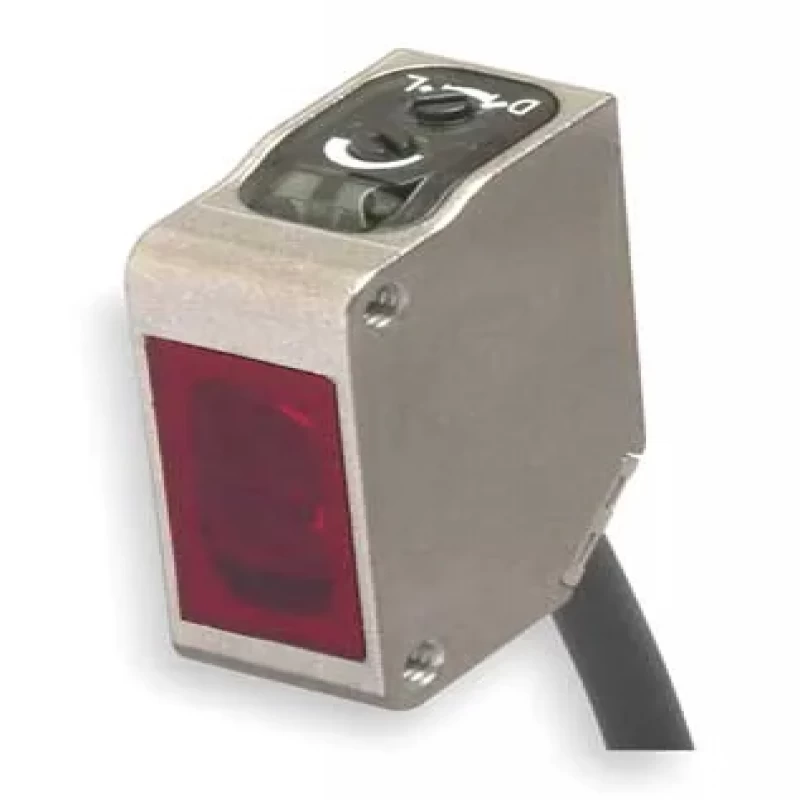

Photoelectric-Sensor-Rectangl-Reflective-E3ZM-R61 2M

Photoelectric Sensor, Rectangl, Reflective

Omron Part No : E3ZM-R61 2M

Item: Photoelectric Sensor

Circuit Type: NPN

IP Rating: 67, 69K

Description
Specifications

Photoelectric Sensor, Shape - Rectangular Photoelectric Sensor Rectangular, Sensing Method - Rectangular Photoelectric Sensor Retroreflective, Power Requirement - Rectangular Photoelectric Sensor 10 to 30V DC, Output Circuit Type - Rectangular Photoelectric Sensor NPN, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On, Max. Sensing Distance - Rectangular Photoelectric Sensor 500 mm, Electrical Connection - Rectangular Photoelectric Sensor 2m Cable

Item: Photoelectric Sensor
Circuit Type: NPN
IP Rating: 67, 69K
Sensing Method - Rectangular Photoelectric Sensor: Retroreflective
Power Requirement - Rectangular Photoelectric Sensor: 10 to 30V DC
Output Circuit Type - Rectangular Photoelectric Sensor: NPN
Width: 0.43"
Operating Mode - Photoelectric Sensor: Selectable Light On/Dark On
Depth: 0.83"
Max. Sensing Distance - Rectangular Photoelectric Sensor: 500 mm
Max. Load Current: 100 mA
Electrical Connection - Rectangular Photoelectric Sensor: 2m Cable
Height - Rectangular Photoelectric Sensor: 32 mm
Electrical Connection: 2m cable
Depth - Rectangular Photoelectric Sensor: 21 mm
Operation Mode: Selectable Light On/Dark On
Light Source: Red LED
Response Time: 1.0 msec
Width - Rectangular Photoelectric Sensor: 11 mm
Sensing Method: Retroreflective
Power Requirement: 10 to 30VDC
Operating Temp. Range: -25 Degrees to 55 Degrees C
Features: Output Short-Cut And Output Reverse Polarity Protection, Surge Suppressor
Shape: Rectangular
Standards: CE Approval
Max. Sensing Distance: 500mm
Length: 1.26"
Body Material: 316L Stainless Steel
Footnotes: 4
Min. Object Size: 75mm dia Opaque

Photoelectric Sensor, Rectangl, Reflective
