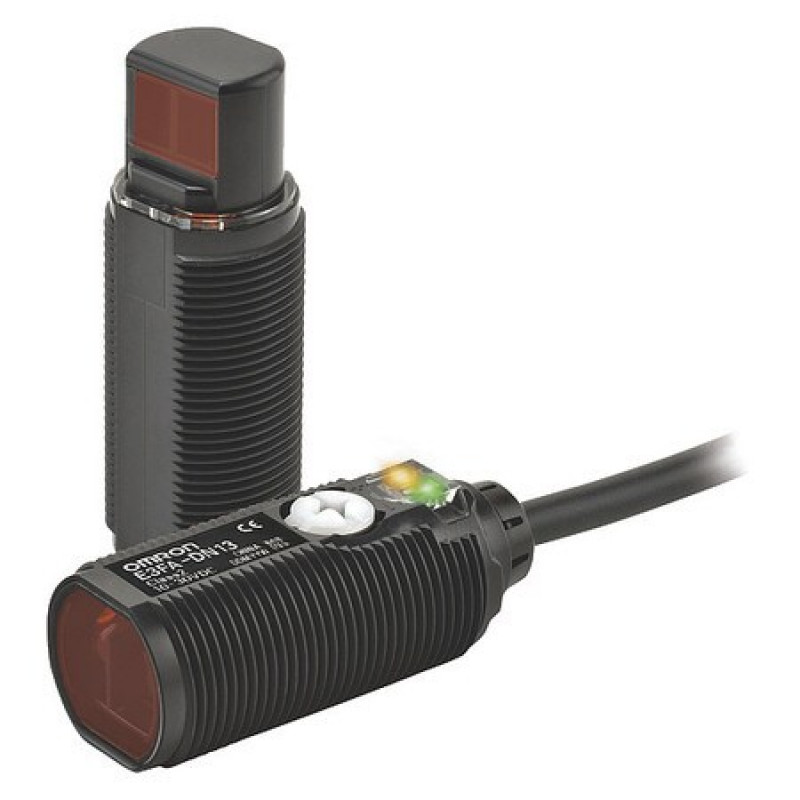

Photoelectric-Sensor-Cylindrical-Diffuse-E3FA-DN112M

Photoelectric Sensor, Cylindrical, Diffuse

Omron Part No : E3FA-DN112M

Item: Cylindrical Photoelectric Sensor

Circuit Type: NPN

IP Rating: 69K

Description
Specifications

Cylindrical Photoelectric Sensor, Sensing Method - Cylindrical Photoelectric Sensor Diffuse, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On, Diameter - Cylindrical Photoelectric Sensor 18 mm, Power Requirement - Cylindrical Photoelectric Sensor 5 to 30V DC, Electrical Connection - Cylindrical Photoelectric Sensor 2m Cable, Circuit Type - Cylindrical Photoelectric Sensor NPN, Max. Sensing Distance - Cylindrical Photoelectric Sensor 100 mm

Item: Cylindrical Photoelectric Sensor
Circuit Type: NPN
IP Rating: 69K
Width: 0.75"
Operating Mode - Photoelectric Sensor: Selectable Light On/Dark On
Depth: 3.25"
Max. Load Current: 100 mA
Electrical Connection: Pre-Wired
Power Requirement: 5 to 30VDC
NEMA Rating: IP69K
Electrical Connection - Cylindrical Photoelectric Sensor: 2m Cable
Max. Sensing Distance: 100mm
Length: 45mm
Response Time: 0.5 msec
Power Requirement - Cylindrical Photoelectric Sensor: 5 to 30V DC
Sensing Method: Diffuse
Operating Temp. Range: -25 Degrees to 55 Degrees C
Light Source: Red LED
Max. Sensing Distance - Cylindrical Photoelectric Sensor: 100 mm
Standards: CE Approval
Diameter - Cylindrical Photoelectric Sensor: 18 mm
Shape: Cylindrical
Diameter: 18mm
Min. Object Size: 75mm dia Opaque
Footnotes: 4, 5
Sensing Method - Cylindrical Photoelectric Sensor: Diffuse
Operation Mode: Selectable Light On/Dark On
Circuit Type - Cylindrical Photoelectric Sensor: NPN
Body Material: ABS Plastic
Features: High Power Red LED for Easy Sensor Alignment and Dependable Outputs In Dusty Environments

Photoelectric Sensor, Cylindrical, Diffuse
