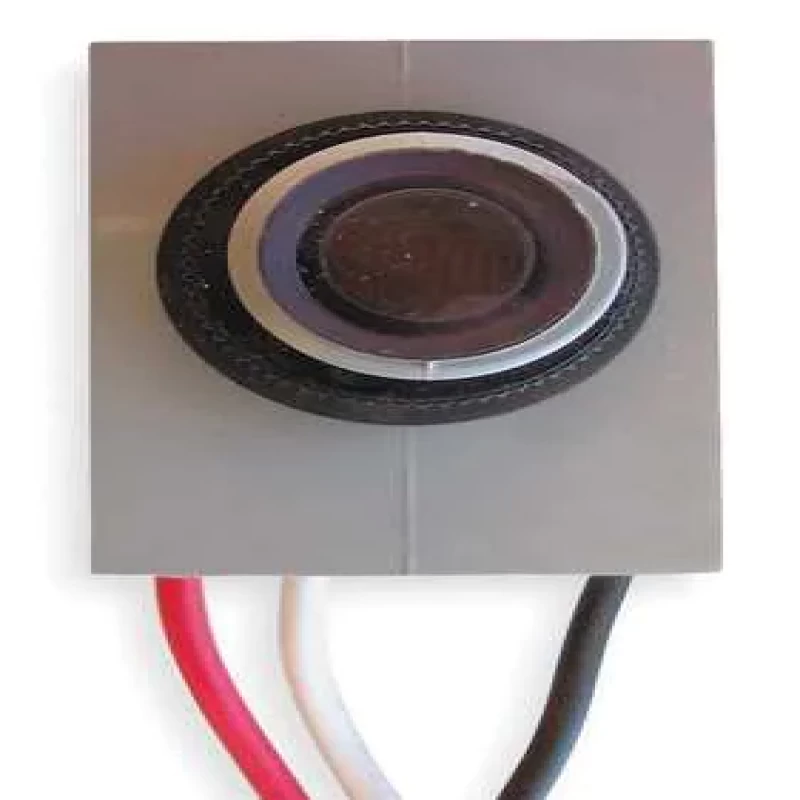

Photocontrol, Fixed, 208 to 277VAC

Intermatic Part No : K4023C

Mounting: Fixed
For Use With: Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
Voltage: 208 to 277V AC

Photocontrol, Mounting Fixed, Voltage 208 to 277V AC, Max. Wattage 4,150, Max. Incandescent Amps 15.0, Max. Ballast Amps 8.3, 1.0 to 5.0 Foot Candles On, 3 to 15 Foot Candles Off, Color Gray, Temp. Range -40 Degrees to 158 Degrees F, Length 1 13/16 in, Width 1 5/16 in, Depth 13/16 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Polycarbonate, Setting Dusk to Dawn, Standards CSA, UL, Includes Locking Nut, Washer Gasket


  • Mounting: Fixed
  • For Use With: Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
  • Voltage: 208 to 277V AC
  • Max. Wattage: 4,150
  • Max. Incandescent Amps: 15.0
  • Max. Ballast Amps: 8.3
  • Foot Candles On: 1.0 to 5.0
  • Foot Candles Off: 3 to 15
  • Color: Gray
  • Temp. Range: -40 Degrees to 158 Degrees F
  • Includes: Locking Nut, Washer Gasket
  • Description/Special Features: Heavy Duty Wired-in with Built in Delay
  • Setting: Dusk to Dawn
  • Housing Material: Polycarbonate
  • Enclosure Type: Raintight
  • Standards: CSA, UL
  • Width: 1 5/16 in
