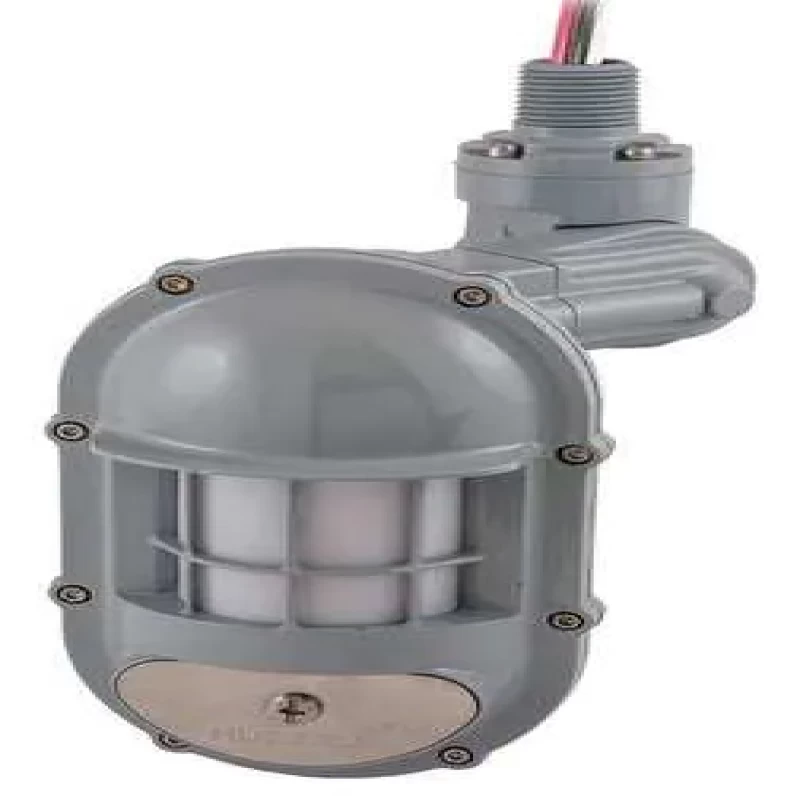

Occupancy Sensor, PIR, 1600 sq ft, Gray

Hubbell Part No : AHP1600WRP

Use With - Motion Sensing and Dimming: Hubbell CU300A, CU300HD, CU300M, CU347A

Item - Motion Sensing and Dimming: Occupancy Sensor

Communication Method - Motion Sensing and Dimming: Hard Wired

Occupancy Sensor, Item - Motion Sensing and Dimming Occupancy Sensor, Communication Method - Motion Sensing and Dimming Hard Wired, Sensing Technology Passive Infrared, Installation Location - Motion Sensor Ceiling, Wall, Coverage at Suggested Mounting Height 1,600 sq ft, Operating Voltage - Motion Sensing and Dimming 24V DC, Color - Motion Sensing and Dimming Gray, Time Delay - Motion Sensor 4 to 30 min, Time Delay Adjustment Method - Motion Sensor Adaptive

  • Use With - Motion Sensing and Dimming: Hubbell CU300A, CU300HD, CU300M, CU347A
  • Item - Motion Sensing and Dimming: Occupancy Sensor
  • Communication Method - Motion Sensing and Dimming: Hard Wired
  • Sensing Technology: Passive Infrared
  • Installation Location - Motion Sensor: Ceiling, Wall
  • Coverage at Suggested Mounting Height: 1,600 sq ft
  • Operating Voltage - Motion Sensing and Dimming: 24V DC
  • Color - Motion Sensing and Dimming: Gray
  • Time Delay Adjustment Method - Motion Sensor: Adaptive
  • Time Delay - Motion Sensor: 4 to 30 min
  • Timer Range: 4 to 30 min.
  • Description/Special Features: Extreme Operating Temperature -40 Degrees to 149 Degrees F, Harsh Environment Sensor, NEMA 4X Protection Use Mfr. No. ACIPE
  • Green Environmental Attribute: Product Contributes To Reducing Energy Consumption
  • Lighting Technology: Dependent on Control Unit
  • Color: Gray
  • Suggested Mounting Height - Motion Sensor: 8 to 12 ft
  • Item: Occupancy Sensor
  • Coverage Angle - Motion Sensor: 160 Degrees
  • Viewing Angle: 160 Degrees
  • Time Delay: Adaptive
  • Max. Capacity @ 277VAC: Dependent on Control Unit Rating
  • Coverage: 1600 sq. ft.
  • For Use With: Mfr. No. CU300A, CU300M, CU300HD, CU347A
  • Sensor Type: Passive Infrared
  • Voltage: 24VDC
  • Max. Capacity @ 120VAC: Dependent on Control Unit Rating
  • Installation Type: Ceiling, Wall
  • Standards: Ul and cUL Listed
